Transmission Range (TR) Sensor: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

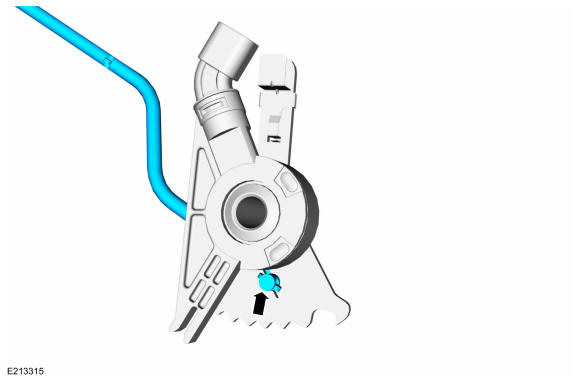

  1. Install the park pawl actuator rod in the TR sensor.
    GFD408925Courtesy of FORD MOTOR COMPANY

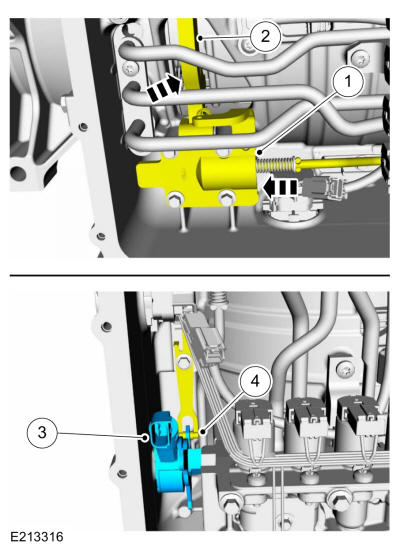

  2. Position the TR sensor and park pawl actuator rod in the transmission case. Push the park pawl up and install the park pawl actuator rod. Align the TR sensor with the detent spring pin and position the TR sensor in place.

    1. Park pawl actuator rod
    2. Park pawl
    3. TR sensor
    4. Detent spring pin

    GFD408926Courtesy of FORD MOTOR COMPANY

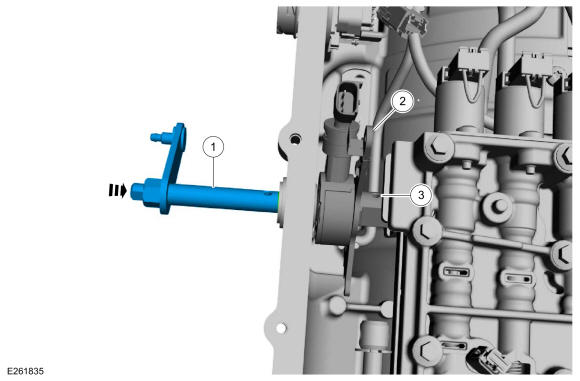

  3. Install the manual shaft in the TR sensor and align the roll pin hole.

    1. Manual shaft
    2. TR sensor
    3. Roll pin hole

    GFD408927Courtesy of FORD MOTOR COMPANY
  4. Install a new manual shaft-to-TR sensor roll pin.
    GFD408928Courtesy of FORD MOTOR COMPANY

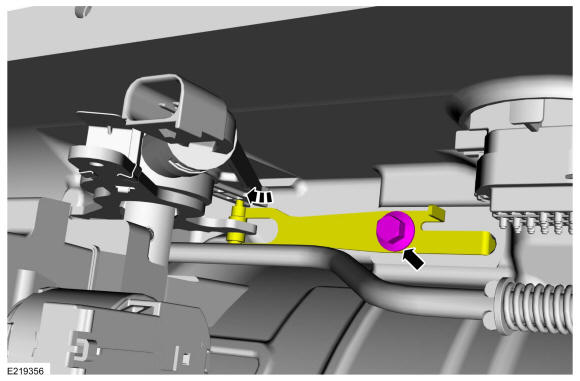

  5. Tighten the TR sensor detent spring bolt.

    Torque:

    106 lb.in (12 Nm)

    GFD408929Courtesy of FORD MOTOR COMPANY

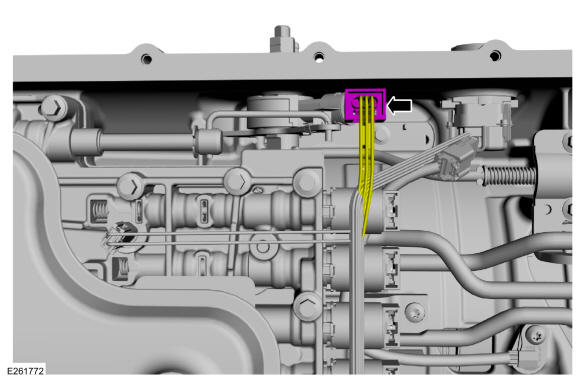

  6. Position the wiring harness in place and connect the TR sensor electrical connector.
    GFD408919Courtesy of FORD MOTOR COMPANY

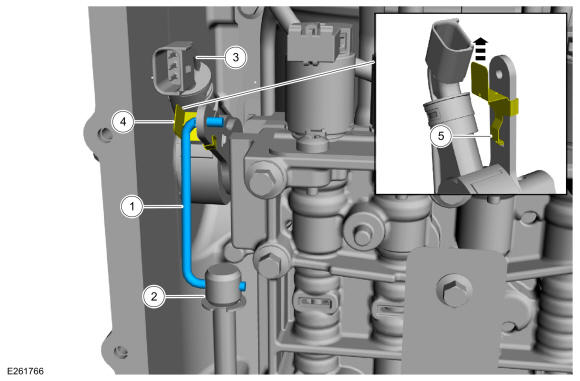

  7. NOTE: Do not bend the manual valve rod clip when installing the manual valve rod. If the manual valve rod clip is bent back to install the manual valve rod instead of sliding it off, the manual valve rod clip will become permanently distorted causing total loss of transmission control or transmission failure. If the manual valve rod clip is bent, install a new manual valve rod clip.

    Install the manual valve rod in the manual valve and the TR sensor and move the manual valve rod clip over the manual valve rod until the manual valve rod clip tab goes through the TR sensor to hold the manual valve rod in place.

    1. Manual valve rod
    2. Manual valve
    3. TR sensor
    4. Manual valve rod clip
    5. Manual valve rod clip tab

    GFD408930Courtesy of FORD MOTOR COMPANY
  8. Install the transmission fluid pan Refer to: Transmission Fluid Pan .

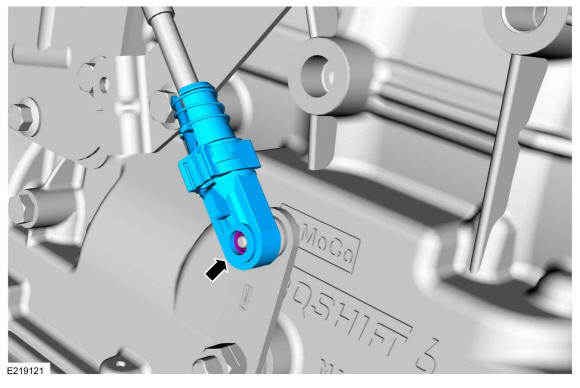

  9. Connect the selector lever cable end.
    GFD408787Courtesy of FORD MOTOR COMPANY
  10. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6R140 .
