Transmission Internal Wiring Harness: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission fluid pan. Refer to: Transmission Fluid Pan .

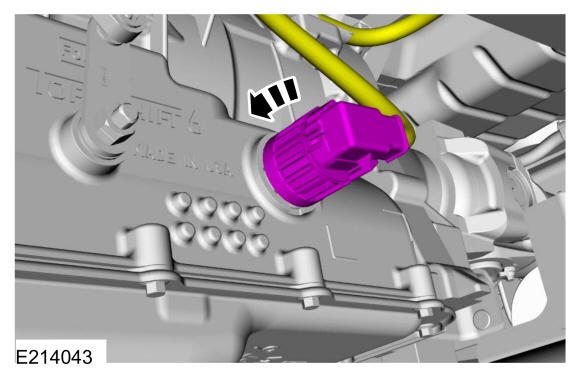

  2. Rotate the shell of the transmission vehicle harness connector counterclockwise and disconnect the transmission vehicle harness connector.
    GFD408914Courtesy of FORD MOTOR COMPANY
  3. Disconnect the selector lever cable end from the manual control lever.
    GFD408783Courtesy of FORD MOTOR COMPANY
  4. Move the manual control lever counterclockwise to the LOW position.
    GFD408915Courtesy of FORD MOTOR COMPANY
  5. Disconnect the electrical connectors and position the transmission wiring harness aside.

    1. Solenoids.
    2. TFT sensor.
    3. TR sensor.
    4. OSS sensor.
    5. TSS sensor.

    GFD408910Courtesy of FORD MOTOR COMPANY

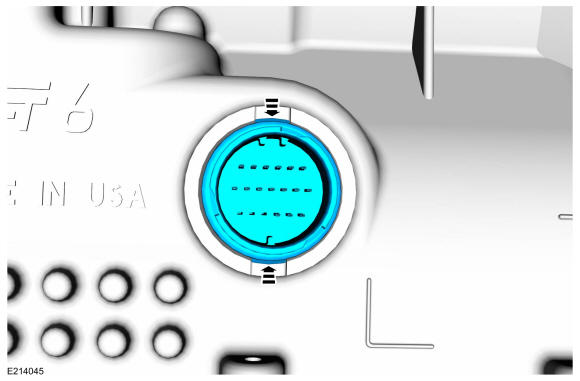

  6. Compress the black tabs and push the wiring harness bulkhead through the transmission case and remove the transmission wiring harness (7G276).
GFD408916Courtesy of FORD MOTOR COMPANY
