Transmission Fluid Temperature (TFT) Sensor: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the TFT sensor.

    1. Install the TFT sensor in the main control valve body and rotate 90 degrees clockwise.
    2. Push down the tab to lock the TFT sensor to lock tab in place.

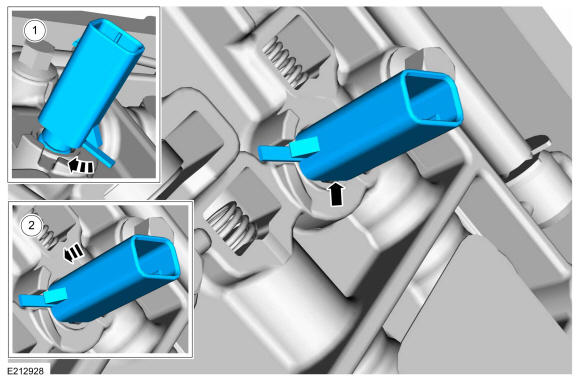

    GFD408913Courtesy of FORD MOTOR COMPANY
  2. Connect the TFT sensor electrical connector.

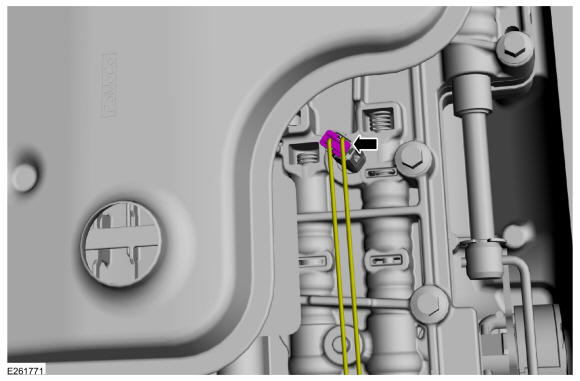

    GFD408911Courtesy of FORD MOTOR COMPANY
  3. Install the transmission fluid pan. Refer to: Transmission Fluid Pan .
