Transmission Fluid Pump: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: This procedure contains the steps required to install a new transmission fluid pump. If disassembling or resealing the transmission fluid pump, refer to Transmission Overhaul.
  1. Using the special tool size the 3 Teflon® seals on the new transmission fluid pump. Use Special Service Tool: 307-657 Installer, Pump Seal - Non-PTO.
    GFD408892Courtesy of FORD MOTOR COMPANY
  2. Remove the transmission. Refer to: Transmission - 6.8L Triton-30V - V10 . Refer to: Transmission - 6.8L Triton-30V - V10 . Refer to: Transmission - 6.8L Triton-30V - V10 .
  3. Mount the transmission to a mounting stand. Use the General Equipment: Mounting Stand
    GFD408796Courtesy of FORD MOTOR COMPANY
  4. Position the transmission upright. Remove Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD408797Courtesy of FORD MOTOR COMPANY
  5. Install the special tools on the torque converter. Install the pin in the bottom hole. Install Special Service Tool: 307-651 Bracket, Pump Remover/Installer.
    GFD408798Courtesy of FORD MOTOR COMPANY
  6. Using the special tool, lift the torque converter. Use enough pressure to break the torque converter hub seal loose and raise the torque converter high enough to allow the torque converter to drain. Remove the torque converter. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away. Use the General Equipment: Mounting Stand
    GFD408799Courtesy of FORD MOTOR COMPANY
  7. Remove the transmission fluid pan bolts and the transmission fluid pan.
    GFD408893Courtesy of FORD MOTOR COMPANY
  8. NOTE: The transmission fluid pan gasket is a reusable gasket. Do not discard the transmission fluid pan gasket.

    Remove the transmission fluid pan gasket.

    GFD408884Courtesy of FORD MOTOR COMPANY

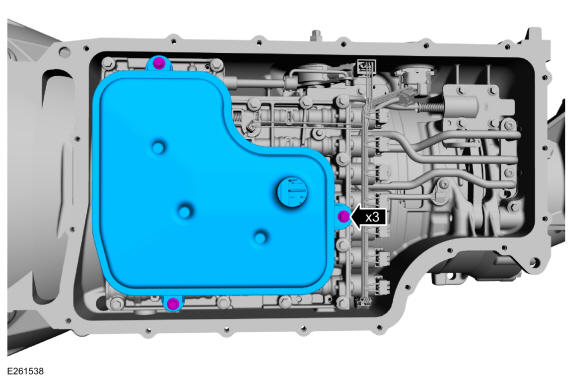

  9. Remove the bolts and the transmission fluid filter.
    GFD408888Courtesy of FORD MOTOR COMPANY

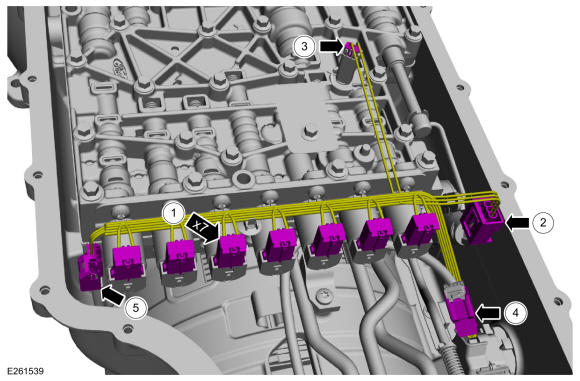

  10. Disconnect the electrical connectors and position the transmission wiring harness retainer aside.

    1. Disconnect the solenoid electrical connectors.
    2. Disconnect the TR sensor electrical connector.
    3. Disconnect the TFT sensor electrical connector.
    4. Disconnect the OSS electrical connectors.
    5. Disconnect the TSS electrical connectors.

    GFD408894Courtesy of FORD MOTOR COMPANY
  11. NOTE: Do not bend the manual valve rod clip when removing the manual valve rod. If the manual valve rod clip is bent back to remove the manual valve rod instead of sliding it off, the manual valve rod clip will become permanently distorted causing total loss of transmission control or transmission failure. If the manual valve rod clip is bent, install a new manual valve rod clip.

    Remove the manual valve rod.

    1. Pull the manual valve rod clip tab out of the TR sensor,
    2. Slide the manual valve rod clip off of the manual valve rod.
    3. Push and remove the manual valve rod from the TR sensor and the manual valve.

    GFD408895Courtesy of FORD MOTOR COMPANY

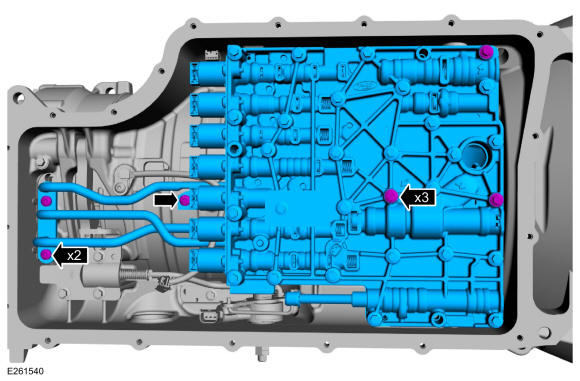

  12. Remove the main control bolts and remove the main control assembly.
    GFD408896Courtesy of FORD MOTOR COMPANY

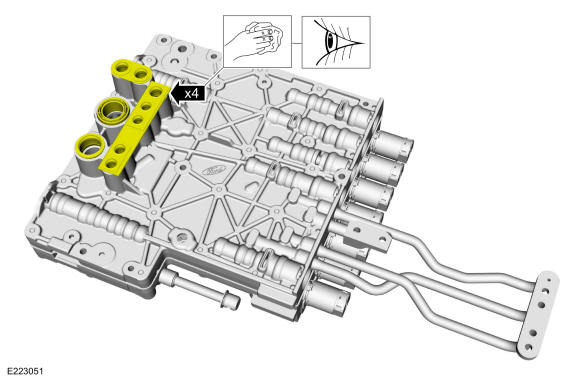

  13. Clean and inspect the seals.
    GFD408897Courtesy of FORD MOTOR COMPANY
  14. Remove the transmission fluid pump bolts.
    GFD408898Courtesy of FORD MOTOR COMPANY
  15. Install the special tool on the transmission fluid pump. Install the pin in the top hole. Use Special Service Tool: 307-651 Bracket, Pump Remover/Installer.
    GFD408899Courtesy of FORD MOTOR COMPANY
  16. Using the special tools lift the transmission fluid pump out of the transmission case. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away., 307-651 Bracket, Pump Remover/Installer.
    GFD408900Courtesy of FORD MOTOR COMPANY

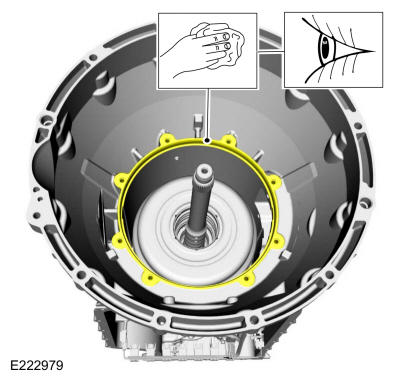

  17. Clean and inspect the transmission case fluid pump sealing surfaces.
    GFD408901Courtesy of FORD MOTOR COMPANY
  18. Remove the selective shim from the top of the No. 1 sun gear.
GFD408902Courtesy of FORD MOTOR COMPANY
