Transmission Fluid Pan: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

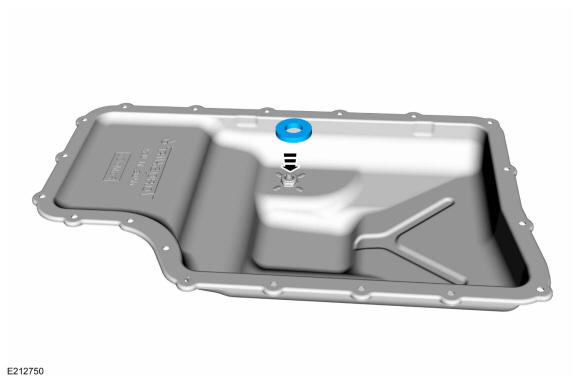

- Position the magnet in the transmission fluid pan.
-
NOTE: The transmission fluid pan gasket can be reused if not damaged.
Install a new transmission fluid pan gasket if required.

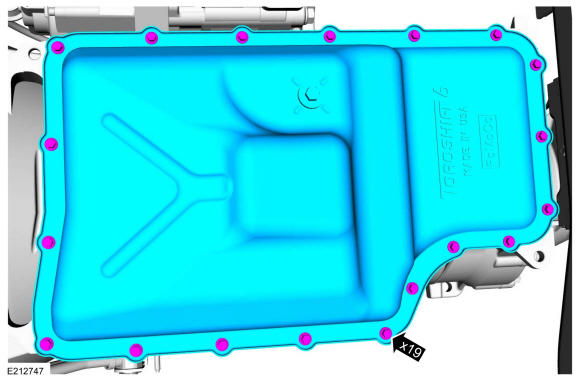

- Install the transmission fluid pan and tighten the bolts in a crisscross pattern.
Torque:
80 lb.in (9 Nm)
- Fill the transmission with clean transmission fluid. Refer to: Transmission Fluid Drain and Refill .
