Transmission Control Module (TCM): Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: The TCM is located above the LHF fender splash shield.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the LHF fender splash shield. Refer to: Fender Splash Shield .
  3. NOTE: Keep the TCM electrical connector straight when disconnecting it or damage the connector terminals can occur.

    Slide the lock tab up and disconnect the TCM electrical connector.

    GFD408878Courtesy of FORD MOTOR COMPANY
  4. Slide the TCM backward in the bracket and remove the TCM.

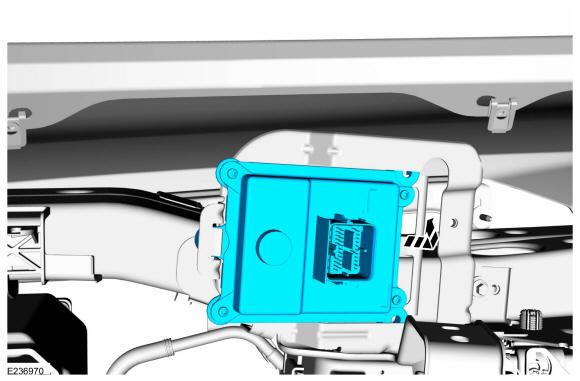

GFD408879Courtesy of FORD MOTOR COMPANY
