Transmission - 6.2L V8: Installation

All vehicles

1. Inspect the back of the engine to be sure both dowel pins are in the engine. If the dowel pins are not in the engine, install new dowel pins as needed. If installing the same transmission that was removed, remove the dowel pins from the transmission and install them in the engine. Rotate the flexplate to align the 2 slots at the 6 o'clock position.

   Courtesy of FORD MOTOR COMPANY

2. NOTE: Prior to installation of the transmission, lubricate the torque converter pilot hub or damage to the torque converter or the engine crankshaft can occur.

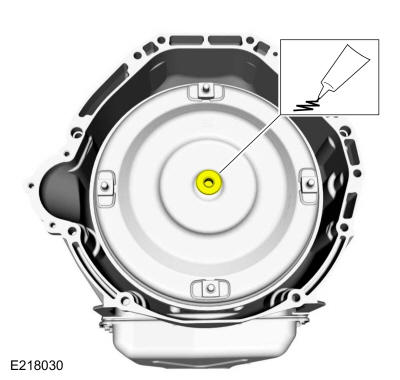

   Lubricate the torque converter pilot hub with multi-purpose grease.

   Material

   Motorcraft® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)

   Courtesy of FORD MOTOR COMPANY

3. Align the paint dot on the torque converter in the 12 o'clock position.

   Courtesy of FORD MOTOR COMPANY

4. NOTE: Be sure to position the Torque Converter Retainer in the proper position to ensure the torque converter is held securely in place.

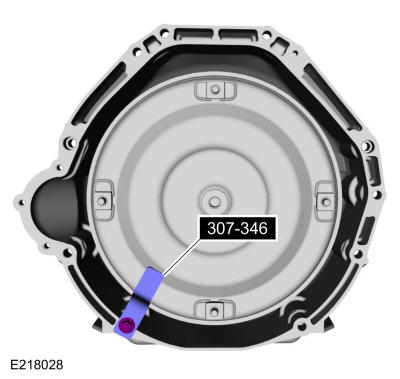

   Install the special tool. Install Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

5. NOTE: Secure the transmission to the transmission jack with a safety strap.
   NOTE: Make sure the transmission jack makes contact on the outer ribs of the transmission fluid pan.

   Using a high-lift transmission jack, position the transmission into the vehicle behind the engine and remove the special tool. Remove Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.

   Courtesy of FORD MOTOR COMPANY

6. Position the fuel line bracket over the torque converter housing and install the transmission on the dowel pins on the back of the engine. Install the upper bellhousing bolts.

   Torque:

   35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

7. Install the RH transmission-to-engine bolts.

   Torque:

   35 lb.ft (48 Nm)

   Courtesy of FORD MOTOR COMPANY

8. Install a new transmission fluid filler tube O-ring (391308). Lubricate it with clean transmission fluid.

   Material

   Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

   Courtesy of FORD MOTOR COMPANY

9. Install the transmission fluid filler tube in the transmission and install the lower transmission fluid filler tube bolt.

   Torque:

   18 lb.ft (25 Nm)

   Courtesy of FORD MOTOR COMPANY

10. Inspect the transmission fluid tube backing rings and seals for damage and install new backing rings or seals if necessary.
    1. Seal (7D285)

       Material

       Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)

    2. Backing ring (7J324)

    Courtesy of FORD MOTOR COMPANY

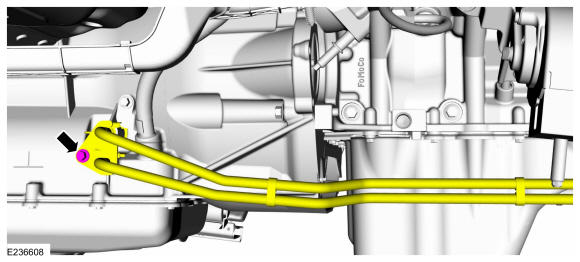

11. Position the transmission fluid cooler tubes in the transmission case and install the bolt.

    Torque:

    18 lb.ft (25 Nm)

    Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

12. Install the transfer case. Refer to: Transfer Case .

    Vehicles equipped with Four-Wheel Drive (4WD) and a manual shift transfer case

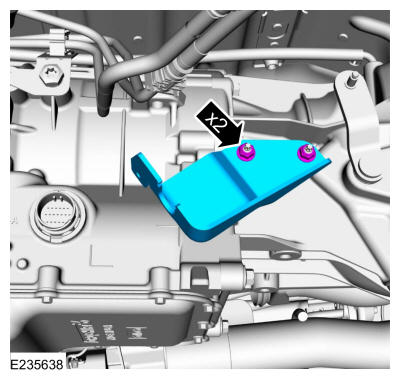

13. Position the transfer case linkage bracket and install the nuts.

    Torque:

    35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

14. 1. Position the transfer case linkage and Attach the rotating slide snap ring (7H181).
    2. Connect transfer case linkage to selector lever.

    Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles equipped with a slip yoke

15. If required, install new transmission support insulator studs.

    Torque:

    55 lb.ft (75 Nm)

16. If removed. Install the transmission support insulator and new transmission support insulator-to-transmission bolts.

    Torque:

    76 lb.ft (103 Nm)

    Courtesy of FORD MOTOR COMPANY

17. Install the rear driveshaft. Refer to: Rear Driveshaft .

    Rear Wheel Drive (RWD) vehicles equipped with a fixed yoke

18. If required, install new transmission support insulator studs.

    Torque:

    55 lb.ft (75 Nm)

19. If removed. Install the transmission support insulator and bracket and the new bolts.

    Torque:

    41 lb.ft (55 Nm)

    Courtesy of FORD MOTOR COMPANY

20. 1. Position the driveshaft on the flange, align the driveshaft flange yoke index mark made during removal.
    2. Install the new center bearing mounting bolts.

       Torque:

       52 lb.ft (70 Nm)

    Courtesy of FORD MOTOR COMPANY

21. Install the new bearing straps (4A254) and the new bolts.

    Torque:

    46 lb.ft (63 Nm)

    Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

22. Install the Transmission Support Crossmember. Refer to: Transmission Support Crossmember .

    All vehicles

23. NOTE: Only use hand tools when installing the engine support insulator nuts or damage to the engine support insulator may occur.

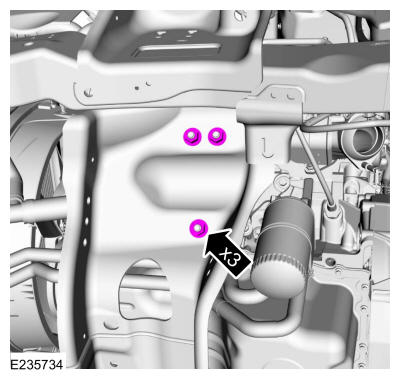

    Install the new LH engine support insulator nuts.

    Torque:

    148 lb.ft (200 Nm)

    Courtesy of FORD MOTOR COMPANY

24. NOTE: The RH engine support insulator studs may come out of the insulator while removing the nuts. Install new RH engine support insulator studs if the studs come out.

    If required, install the new RH engine support insulator stud (W790018).

    Torque:

    59 lb.ft (80 Nm)

25. NOTE: Only use hand tools when installing the engine support insulator nuts or damage to the engine support insulator may occur.

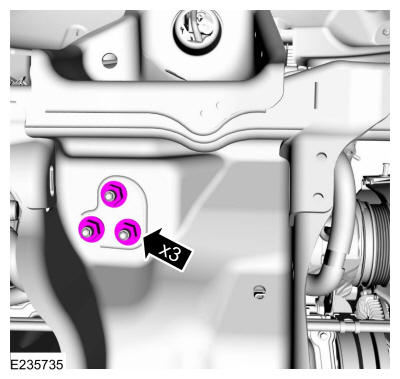

    Install the new RH engine support insulator nuts.

    Torque:

    148 lb.ft (200 Nm)

    Courtesy of FORD MOTOR COMPANY

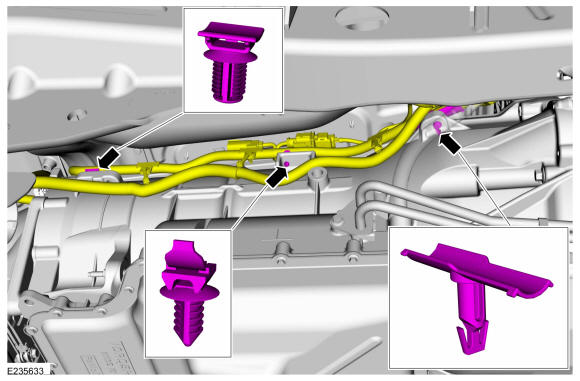

26. Position the wiring harness and attach the wiring harness retainers on the transmission case.

    Courtesy of FORD MOTOR COMPANY

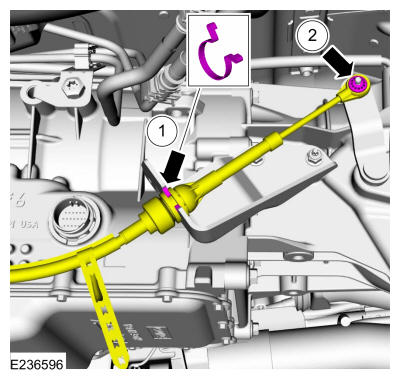

27. 1. Position the selector lever cable bracket and install the bolts.

       Torque:

       35 lb.ft (48 Nm)

    2. Connect the selector lever cable to the manual control lever.

    Courtesy of FORD MOTOR COMPANY

28. 1. Attach the wiring harness retainer to the transmission case.
    2. Connect the transmission vehicle harness connector and lock the transmission vehicle harness connector by rotating the outer shell clockwise.

    Courtesy of FORD MOTOR COMPANY

29. Install the flexplate inspection cover and the bolts.

    Torque:

    26 lb.ft (35 Nm)

    Courtesy of FORD MOTOR COMPANY

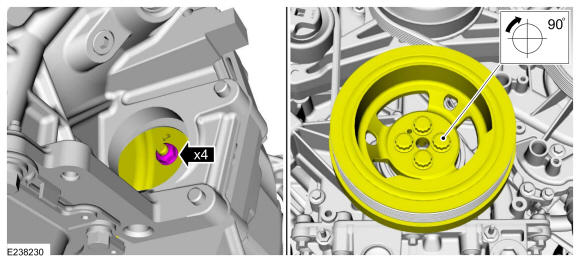

30. Install the new torque converter nuts (W715618).

    Torque:

    35 lb.ft (48 Nm)

    Courtesy of FORD MOTOR COMPANY

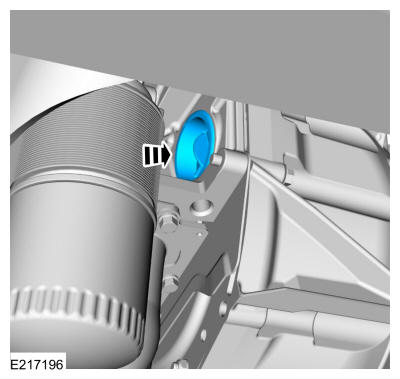

31. Install the rubber torque converter access cover.

    Courtesy of FORD MOTOR COMPANY

32. Install the following items:
    1. Refer to: Dual Catalytic Converter Y-Pipe .
    2. Refer to: Starter Motor .

33. Adjust the selector lever cable. Refer to: Selector Lever Cable Adjustment - 6-Speed Automatic Transmission - 6R140 .
34. NOTE: If transmission was drained, fill the transmission with clean transmission fluid.
    NOTE: If transmission was not drained, install the transmission fluid level indicator then check and adjust the transmission fluid level.

    Fill the transmission with clean transmission fluid. Refer to: Transmission Fluid Drain and Refill .

35. If a new main control was installed, the solenoid body strategy will need to be updated. Refer to: Transmission Strategy Download .
36. After completing the repairs, use the scan tool to perform the Misfire Monitor Neutral Profile Correction procedure, following the on-screen instructions.
