Torque Converter Seal: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. If reusing the original torque converter, use an emery cloth to clean the torque converter hub seal material off of the torque converter hub.
    GFD408806Courtesy of FORD MOTOR COMPANY

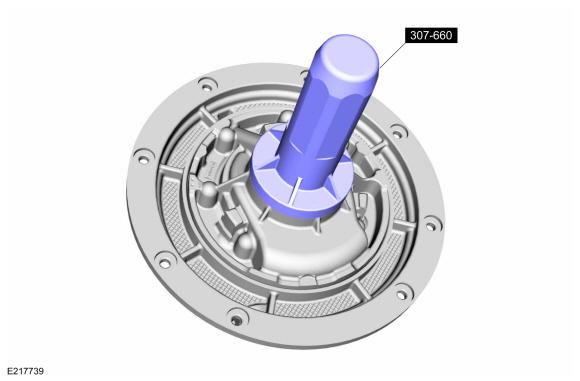

  2. NOTE: Pump shown removed for clarity.

    Using the special tool, install a new torque converter hub seal. Use Special Service Tool: 307-660 Installer, Front Pump Seal.

    GFD408807Courtesy of FORD MOTOR COMPANY
  3. Install the special tools on the torque converter with the pin in the bottom hole. Use Special Service Tool: 307-651 Bracket, Pump Remover/Installer.
    GFD408798Courtesy of FORD MOTOR COMPANY
  4. Using the special tools, install the torque converter. Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away. Use the General Equipment: Mounting Stand
    GFD408799Courtesy of FORD MOTOR COMPANY
  5. Install the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD408797Courtesy of FORD MOTOR COMPANY
  6. Install the transmission. Refer to: Transmission .
