Transmission Case: Disassembly
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

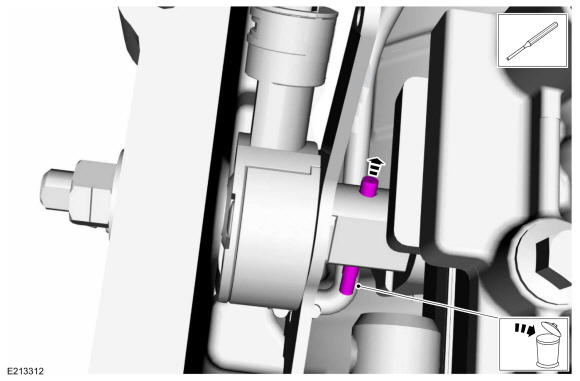

- Using a punch, remove and discard the manual shaft-to-TR sensor roll pin (7G100). Use the General Equipment: Punch

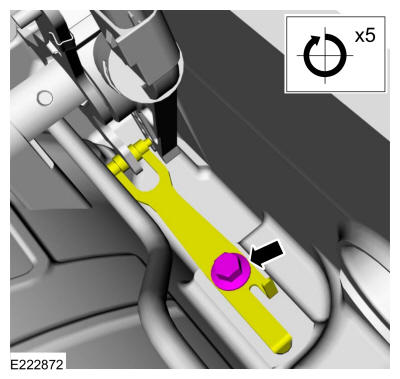

- Loosen the TR sensor detent spring bolt and the detent spring enough to remove the tension from the TR sensor.

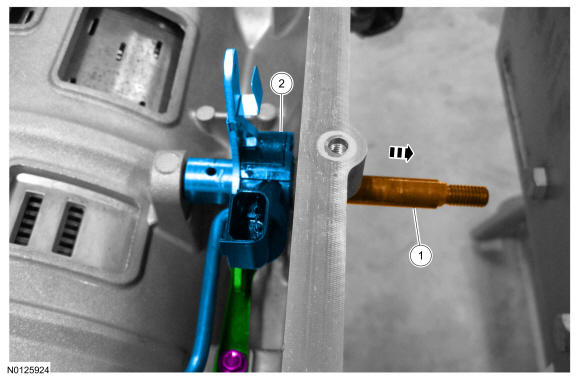

- Slide the manual shaft out and remove the TR sensor, park pawl actuator rod and the manual shaft.
- Manual shaft
- TR sensor

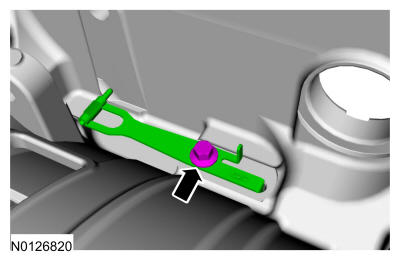

- Remove the bolt and the TR sensor detent spring.

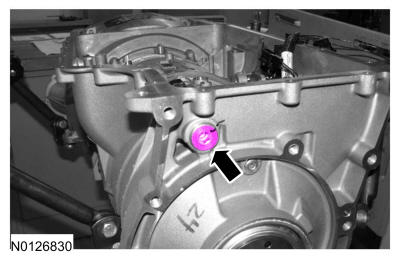

- Remove the park pawl pin plug.
- Remove the park pawl pin and the park pawl.

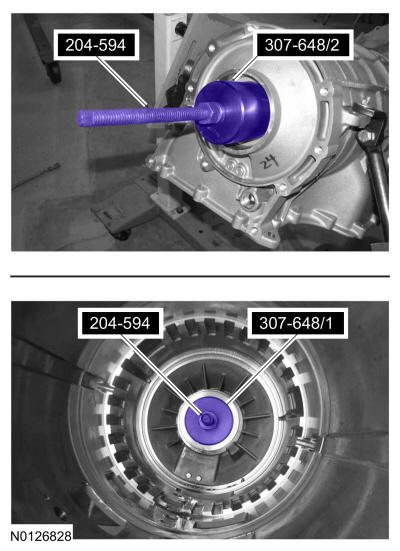

- Install the special tools on the rear bearing and remove the inner and outer output shaft bearings. Use Special Service Tool: 204-594 Forcing screw., 307-648 Remover/Installer, Rear Bearing.

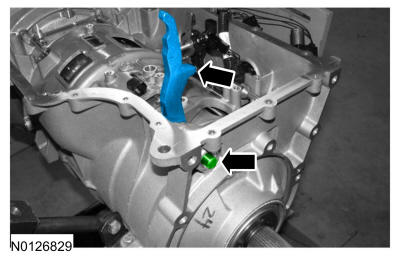

- If equipped, Remove and discard the PTO cover bolts (W708587). Remove the PTO cover and gasket. Discard the gasket (7A036).
