Transmission - 6.2L V8: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the starter motor. Refer to: Starter Motor .
  3. NOTE: If transmission disassembly or installation of a new transmission is necessary, drain the transmission fluid.

    Remove the bolts and the transmission fluid pan and allow the transmission fluid to drain.

    GFD408366Courtesy of FORD MOTOR COMPANY
  4. NOTE: It is not necessary to torque transmission fluid pan bolts at this time.

    Install the transmission fluid pan and the bolts.

    GFD408366Courtesy of FORD MOTOR COMPANY
  5. Remove the bolts and the flexplate inspection cover.
    GFD408367Courtesy of FORD MOTOR COMPANY
  6. Remove the rubber torque converter nut access cover.
    GFD408368Courtesy of FORD MOTOR COMPANY
  7. NOTE: Only rotate the crankshaft in a clockwise direction.

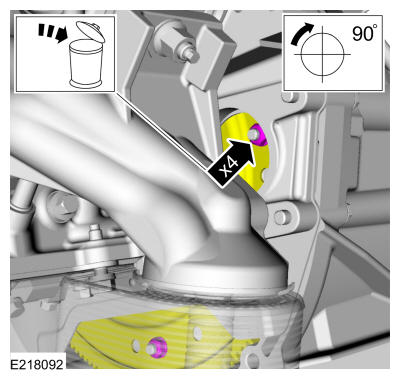

    Remove and discard the torque converter nuts (W714689).

    GFD408369Courtesy of FORD MOTOR COMPANY
  8. Remove the exhaust Y-Pipe. Refer to: Dual Catalytic Converter Y-Pipe .

    Rear Wheel Drive (RWD) vehicles

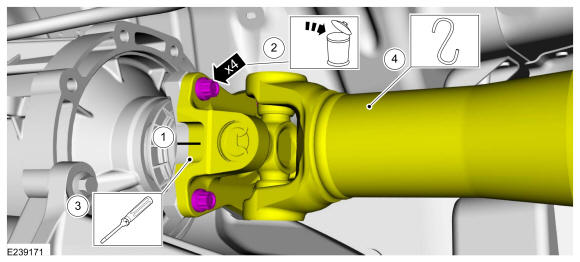

    1. Index-mark the driveshaft flange to the transmission flange to maintain alignment during installation.
    2. Remove and discard the driveshaft flange to transmission flange bolts (N811880).
    3. NOTE: The driveshaft flange fits tightly on the flange pilot. Never hammer on the driveshaft or any of its components to disconnect the driveshaft flange from the flange pilot. Pry only in the area shown with a tool, to disconnect the driveshaft flange from the flange pilot or damage to the driveshaft flange can occur.
      NOTE: The driveshaft flange to transmission flange is a tight fit. It may be necessary to remove the center bearing bolts before the driveshaft flange will separate from the transmission flange.

      Using a large flat headed screwdriver or tire lever, separate the driveshaft flange from the transmission flange. Use the General Equipment: Flat Headed Screw Driver. Use the General Equipment: Tire Lever

    4. Support the driveshaft.
    GFD408370Courtesy of FORD MOTOR COMPANY
  10. Remove the driveshaft center bearing bolts and position aside the driveshaft.
    GFD408371Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  11. Remove the front and rear driveshafts. Refer to: Front Driveshaft . Refer to: Rear Driveshaft .

    Vehicles equipped with electronic shift on the fly transfer case

  12. Disconnect the shift motor electrical connector and detach the harness retainer clips and pushpin from the transfer case.
    GFD408372Courtesy of FORD MOTOR COMPANY

    Vehicles equipped with manual shift transfer case

  13. Disconnect the manual shift indicator harness connector and pushpin.
    GFD408373Courtesy of FORD MOTOR COMPANY
  14. Remove manual shift lever cable bracket nuts and position the manual shift lever cable aside.
    GFD408374Courtesy of FORD MOTOR COMPANY

    All vehicles

  15. Using a high-lift transmission jack and safety chain support the transmission. Use the General Equipment: Transmission Jack
    GFD408375Courtesy of FORD MOTOR COMPANY
  16. Remove the transmission support crossmember. Refer to: Transmission Support Crossmember .
  17. Disconnect the transmission vent tube.
    GFD408376Courtesy of FORD MOTOR COMPANY
  18. Remove the transmission fluid cooler tube bracket bolt and position aside the transmission fluid cooler tubes.
    GFD408377Courtesy of FORD MOTOR COMPANY

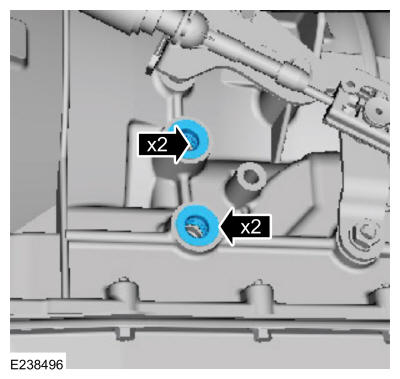

  19. Inspect the transmission to be sure the transmission fluid tube seals and backing rings were removed with the transmission fluid tubes and are not stuck in the transmission. If the transmission fluid tube seals or backing rings are stuck in the transmission, remove the seals and backing rings.
    GFD408378Courtesy of FORD MOTOR COMPANY

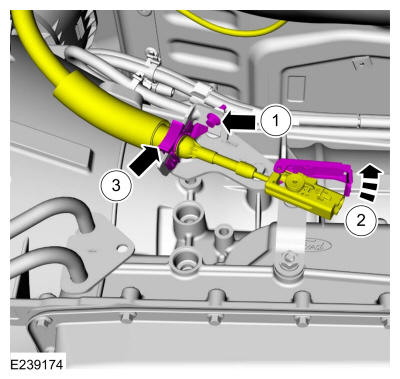

  20. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the manual control lever and the selector lever cable bracket.

    1. Remove the selector lever cable bolt.
    2. Move the locking tab up and disconnect the selector lever cable end from the manual control lever.
    3. Disconnect the selector lever cable from the bracket and position aside.

    GFD408379Courtesy of FORD MOTOR COMPANY
  21. NOTE: RWD shown, 4WD similar.

    Remove the fuel line bracket bolt.

    GFD408380Courtesy of FORD MOTOR COMPANY
    1. Detach the retainers and position the wiring harness aside.
    2. Remove the heat shield bolt.
    3. Remove the nuts and the heat shield.
    GFD408312Courtesy of FORD MOTOR COMPANY

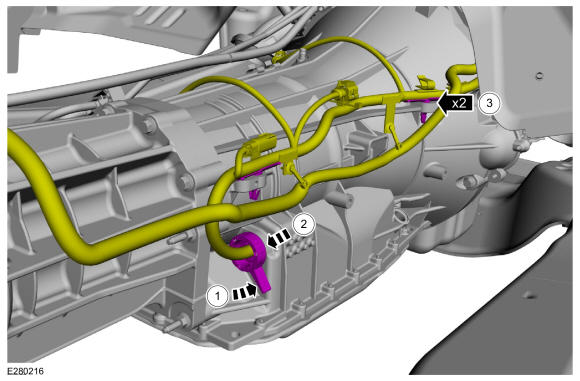

    1. Rotate the transmission electrical connector counterclockwise.
    2. Pull the transmission electrical connector out to disconnect.
    3. Detach the retainers and position the wiring harness aside.
    GFD408381Courtesy of FORD MOTOR COMPANY
  24. Detach the LH retainer and position the wiring harness aside.
    GFD408382Courtesy of FORD MOTOR COMPANY
  25. Remove the top bellhousing bolts and position aside the fuel lines mounting bracket.
    GFD408383Courtesy of FORD MOTOR COMPANY
  26. Remove the LH bellhousing bolts.
    GFD408384Courtesy of FORD MOTOR COMPANY
  27. Remove the transmission fluid cooler tube mounting bracket bolt and position aside the transmission fluid cooler tubes.
    GFD408385Courtesy of FORD MOTOR COMPANY
  28. Slide the transmission back enough to install the special tool. Use Special Service Tool: 307-346 (T97T-7902-A) Retainer, Torque Converter.
    GFD408386Courtesy of FORD MOTOR COMPANY

    Rear Wheel Drive (RWD) vehicles

  29. Using the high-lift transmission jack, remove the transmission from the vehicle. Use the General Equipment: Transmission Jack
    GFD408387Courtesy of FORD MOTOR COMPANY

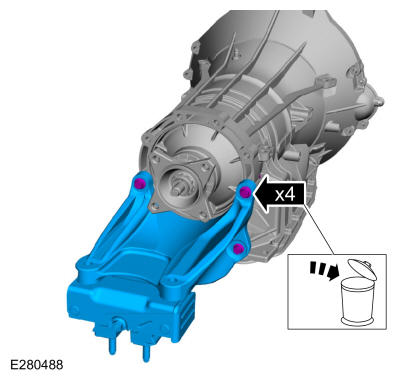

  30. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, remove and discard the bolts (N605804) and remove the bracket.
    GFD408388Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

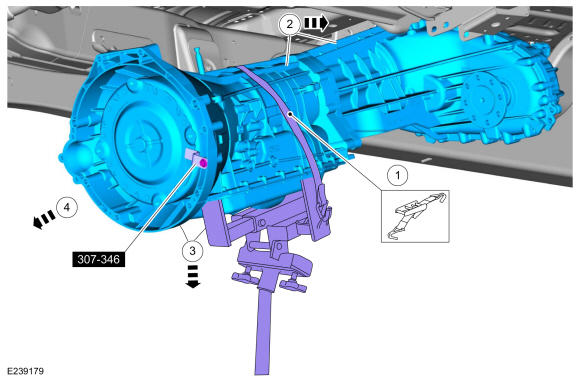

    1. Make sure the transmission is securely fastened to the transmission jack. Use the General Equipment: Transmission Jack
    2. Slide the transmission towards the rear of the vehicle.
    3. Tilt the front of the transmission down.
    4. Remove the transmission from the vehicle.
    GFD408389Courtesy of FORD MOTOR COMPANY

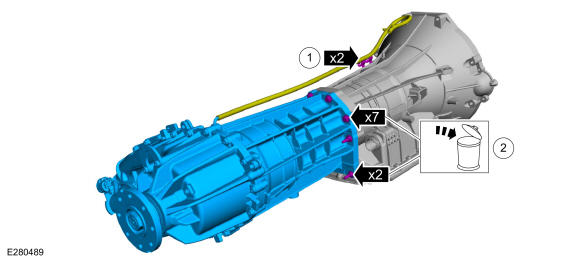

    1. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, disconnect the vent hose retainers.
    2. Remove and discard the bolts (N605804) and separate the transfer case from the transmission.
    GFD408390Courtesy of FORD MOTOR COMPANY

    All vehicles

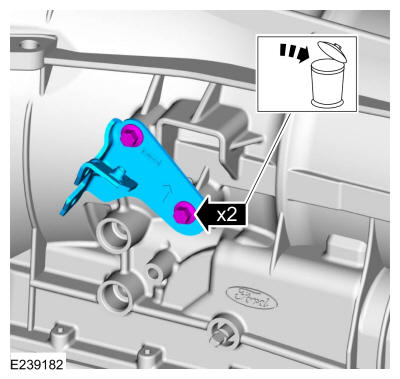

  33. If installing a new or re-manufactured transmission, remove the bolts and bracket. Discard the bolts (W715131).
    GFD408391Courtesy of FORD MOTOR COMPANY
  34. If the transmission is to be overhauled or if installing a new or re-manufactured transmission, carry out the Transmission Fluid Cooler Backflushing and Cleaning procedure. Refer to: Transmission Fluid Cooler - Backflushing and Cleaning .
