Selector Shaft Seal: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. NOTE: To prevent selector lever cable damage, do not apply force to the selector lever cable between the selector lever and the selector lever cable bracket.

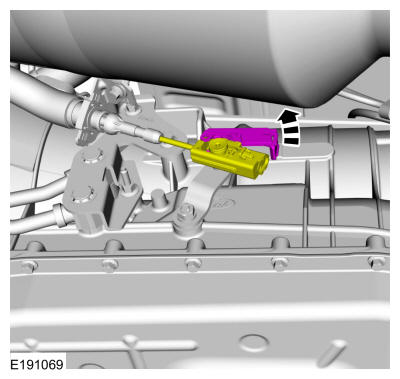

    Move the locking tab up and disconnect the selector lever cable from the manual control lever.

    GFD408345Courtesy of FORD MOTOR COMPANY
  3. Remove the main control valve body. Refer to: Main Control Valve Body .
  4. Disconnect the spring. Remove the bolts and the park rod actuating plate.
    GFD408346Courtesy of FORD MOTOR COMPANY

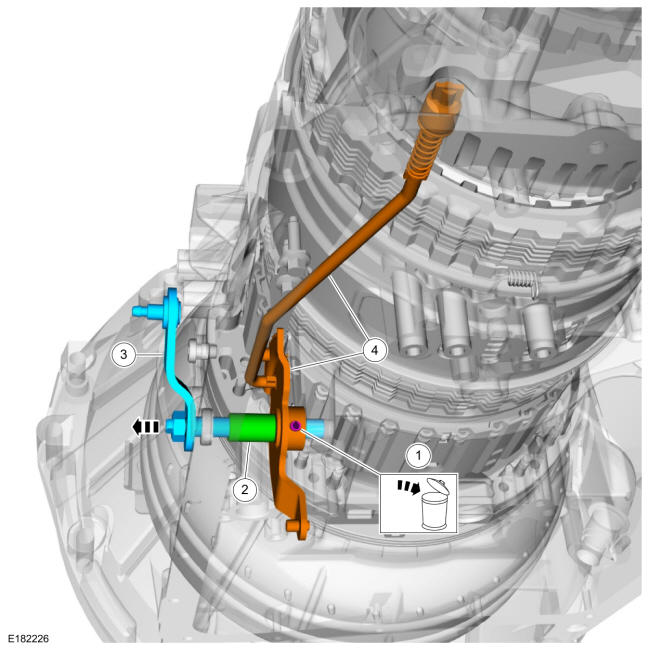

    1. Remove and discard the roll pin.
    2. Hold the selector lever spacer to keep it from falling.
    3. Slide the selector lever shaft out of the case.
    4. Remove the manual valve detent lever and park pawl actuator rod as an assembly.
    GFD408347Courtesy of FORD MOTOR COMPANY
  6. Remove and discard the selector shaft seal.
GFD408348Courtesy of FORD MOTOR COMPANY
