Output Shaft Seal: Removal

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

    Rear Wheel Drive (RWD) vehicles

  2. Remove the rear driveshaft assembly. Refer to: Rear Driveshaft .
  3. NOTE: The output shaft flange retaining nut has been staked to prevent it from coming loose. Prior to removing the nut, remove the stake to prevent damage to the output shaft.

    Remove the stakes from the output shaft flange retaining nut. Use the General Equipment: Punch

    GFD408332Courtesy of FORD MOTOR COMPANY

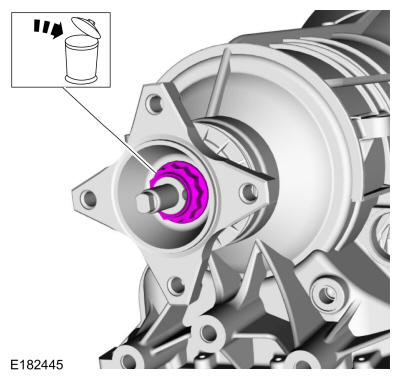

  4. Remove and discard the output shaft flange retaining nut.
    GFD408333Courtesy of FORD MOTOR COMPANY
  5. Remove the output shaft flange seal and the output shaft flange.
    GFD408334Courtesy of FORD MOTOR COMPANY

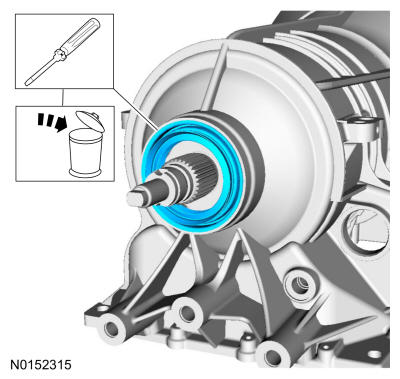

  6. Remove and discard the output shaft seal.
    GFD408335Courtesy of FORD MOTOR COMPANY

    Four-Wheel Drive (4WD) vehicles

  7. Remove the transfer case assembly. Refer to: Transfer Case .

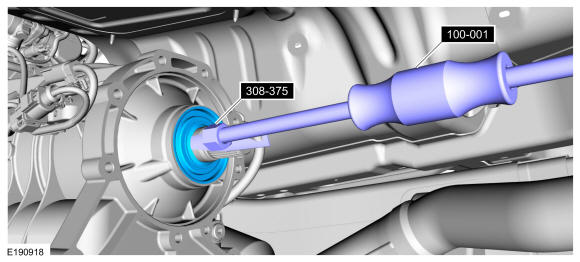

  8. Using the special tools, remove and discard the output shaft seal. Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer., 308-375 Remover, Input Shaft Seal.
GFD408336Courtesy of FORD MOTOR COMPANY
