Transmission Fluid Drain and Refill

WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations, refer to OEM COLOR CODING

Special Tool(s) / General Equipment

Fluid Suction Gun

Materials

Name	Specification
Motorcraft® MERCON® LV Automatic Transmission FluidXT-10-QLVC	WSS-M2C938-AMERCON® LV,

Draining

NOTE: The transmission fluid pan must be removed to drain the transmission fluid. Follow the steps in the Transmission Fluid Pan, Gasket and Filter procedure to remove and install the transmission fluid pan. It is not necessary to remove the transmission fluid filter to drain the transmission fluid.

Remove the transmission fluid pan to drain the transmission fluid. Refer to: Transmission Fluid Pan, Gasket and Filter .

Filling

NOTE: This procedure contains the air purge steps required to purge air from the transmission fluid cooling system. This procedure is NOT intended for use with the Transmission Fluid Level Check.

NOTE: The vehicle should not be driven if the transmission fluid level is low or internal failure could result.

NOTE: The use of any other transmission fluid than specified can result in the transmission failing to operate in a normal manner or transmission failure.

NOTE: Check the transmission fluid level if the transmission starts to slip, shifts slowly or shows signs of transmission fluid leaking.

NOTE: Here is an overview of the Transmission Fluid Refill procedure.

Adding 3.3L (3.5 qt) of transmission fluid is an initial fill enabling the engine to be started.

Filling the transmission to the transmission fluid level indicator area below the crosshatch mark allows the vehicle to be driven.

The vehicle should be driven to allow the transmission fluid temperature to reach 93 deg. C - 99 deg. C (200 deg. F - 210 deg. F) in order to purge the air from the transmission fluid cooling system.

Fill the transmission fluid to the fill range on the transmission fluid level indicator at the normal operating range 93 deg. C - 99 deg. C (200 deg. F - 210 deg. F).

Remove the transmission fluid fill plug and remove the transmission fluid level indicator from the plug.

Courtesy of FORD MOTOR COMPANY
NOTE: The transmission will need 3.3L (3.5 qt) of transmission fluid added to the transmission as an initial fill if:
- a new main control has been installed.
- the transmission fluid pan or transmission fluid filter have been removed.
NOTE: The transmission will need 11.35L (12 qt) of transmission fluid added to the transmission as an initial fill if the transmission has been overhauled.

NOTE: The use of a pressurized fluid dispenser with 8-12 qt capacity such as the Mityvac MITMV6412 is recommended for this procedure.

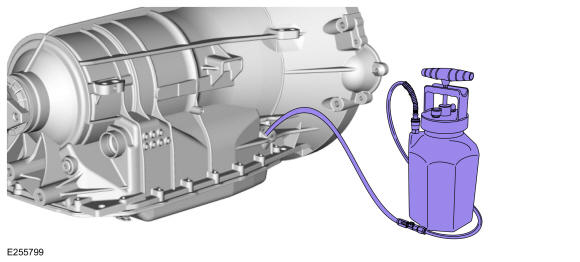

Using the fluid dispenser, add transmission fluid to the transmission through the transmission fluid fill hole.
- General Equipment: Universal Fluid Dispenser
  Material

  Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Courtesy of FORD MOTOR COMPANY
1. Connect the diagnostic scan tool and monitor the transmission fluid temperature.
2. Start the engine.
3. Place the selector lever in each gear position, holding approximately 5 seconds in each position. Place the selector lever in PARK, with the engine at idle (600-750 rpm).
- Check the transmission fluid level using the transmission fluid level indicator.
Courtesy of FORD MOTOR COMPANY
NOTE: The vehicle is safe to drive with a cold transmission fluid temperature if the transmission fluid level is in the transmission fluid level indicator area below the crosshatch mark as shown. Failure to add transmission fluid to this level can result in damage to the transmission.

Add transmission fluid to the area on the transmission fluid level indicator below the crosshatch mark.

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid fill plug.
Torque:

26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Always drive the vehicle in a safe manner according to driving conditions and obey all traffic laws.

Drive the vehicle. While driving the vehicle, use the scan tool to verify the transmission fluid has reached a temperature of 93 deg. C - 99 deg. C (200 deg. F - 210 deg. F). This circulates the transmission fluid through the torque converter and the transmission fluid cooling system, eliminating any trapped air in the transmission fluid cooling system. With the engine idling (600-750 rpm) in PARK, verify the transmission fluid temperature is between 93 deg. C - 99 deg. C (200 deg. F - 210 deg. F) and lift the vehicle on a hoist. Refer to: Jacking and Lifting - Overview .
Remove the transmission fluid fill plug and remove the transmission fluid level indicator from the plug.

Courtesy of FORD MOTOR COMPANY
Check the transmission fluid level using the transmission fluid level indicator.

Courtesy of FORD MOTOR COMPANY
NOTE: The transmission fluid level indicator has 2 areas for the fluid level, A and B as shown. The different areas are for different vehicle models. Use the area "B" when checking the transmission fluid level. The correct transmission fluid level is at the center of the "B" area on the transmission fluid level indicator.

Using the scan tool verify the transmission fluid temperature is between 93 deg. C - 99 deg. C (200 deg. F - 210 deg. F). The transmission fluid level must be at the center of the "B" area on the transmission fluid level indicator.

Courtesy of FORD MOTOR COMPANY
NOTE: The use of a pressurized fluid dispenser with 8-12 qt capacity such as the Mityvac MITMV6412 is recommended for this procedure.

If the transmission fluid level is low, add transmission fluid using the fluid dispenser.
- General Equipment: Universal Fluid Dispenser
  Material

  Motorcraft® MERCON® LV Automatic Transmission Fluid / XT-10-QLVC (WSS-M2C938-A) (MERCON® LV,)
Courtesy of FORD MOTOR COMPANY

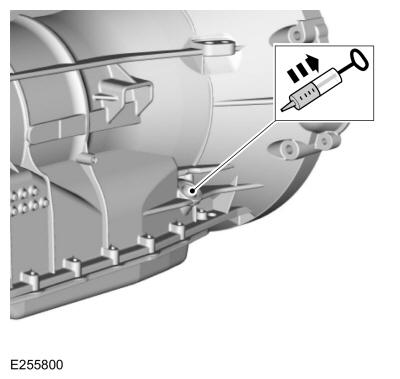

If the transmission fluid is overfilled, remove the transmission fluid with a fluid suction gun. Use the General Equipment: Fluid Suction Gun

Courtesy of FORD MOTOR COMPANY
Install the transmission fluid fill plug.
Torque:

26 lb.ft (35 Nm)

Courtesy of FORD MOTOR COMPANY
