Low One-Way Clutch Assembly
WARNING: This page is about a different car, the 2019 Ford F-350 Super Duty and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For low one way clutch operation, REFER to: Low One-Way Clutch Assembly .
NOTE:
Do not clean with water or with water-based solvents. Damage to the component may occur.
NOTE:
The low one way clutch cannot be disassembled.

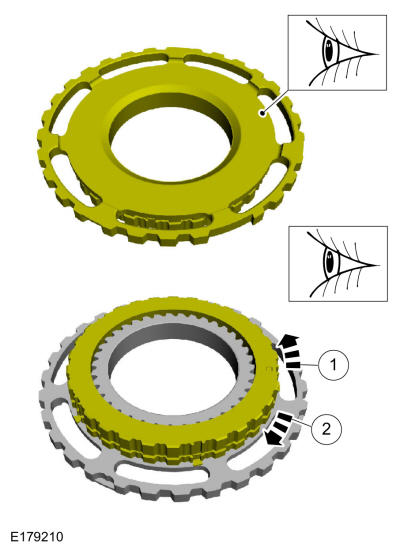

Clean and inspect the low one way clutch for cracks and damaged splines. The splined section should rotate in the direction of the number 1 arrow and lock when rotated in the direction of the number 2 arrow. Check for burned or excessively worn surfaces. If any damage is found or the clutch does not rotate or lock, install a new low one-way clutch.
