Differential Carrier: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

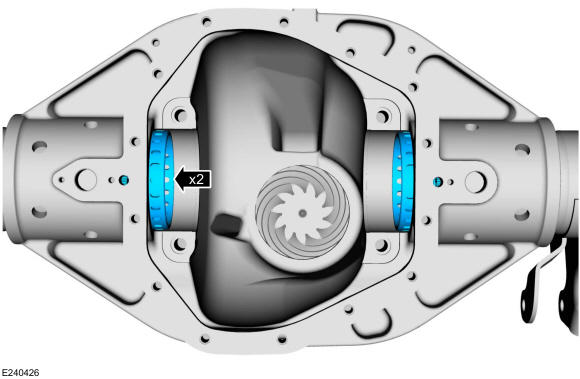

- If removed. Screw in the differential preload adjusters enough to install the differential carrier.

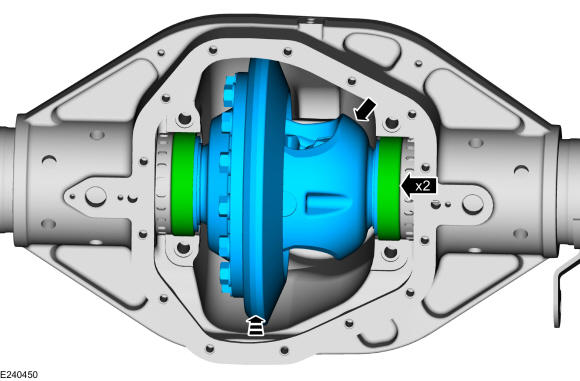

- Install the differential carrier and differential carrier bearing cups.
-

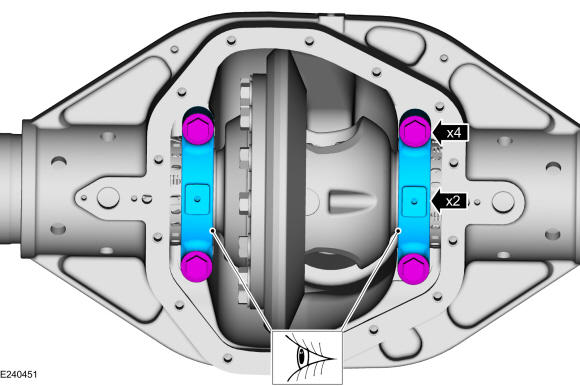

NOTE: The differential bearing caps and differential bearing cap bolts need to be installed in the same location as removed.NOTE: Only tighten the bolts finger tight at this stage.
Install the differential bearing caps and differential bearing cap bolts hand tight.

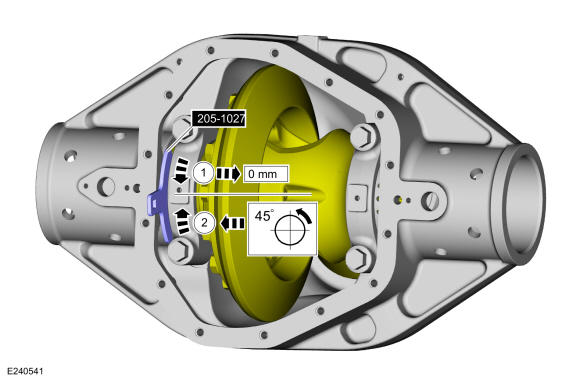

- Set ring gear and pinion gear mesh.

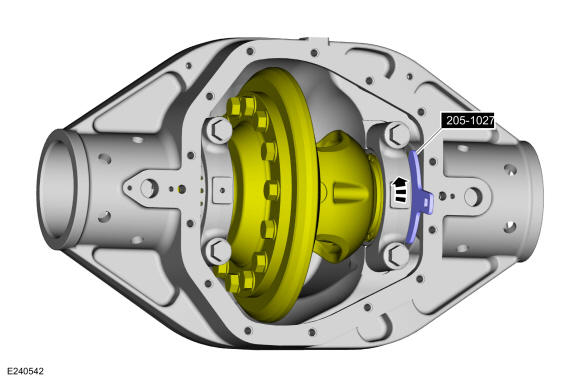

- Tighten the LH differential bearing preload adjuster until there is approximately zero gap between the ring gear and the pinion gear. Use Special Service Tool: 205-1027 Adjuster, Differential Bearing.
- Back off the LH differential bearing preload adjuster about 45 degrees.
- Tighten the RH differential bearing preload adjuster until the preload specification is achieved. Refer to: Specifications .
Use Special Service Tool: 205-1027 Adjuster, Differential Bearing.
-
NOTE: If the backlash needs to be adjusted after the backlash check, the differential carrier bearing cap bolts will need to be loosened.

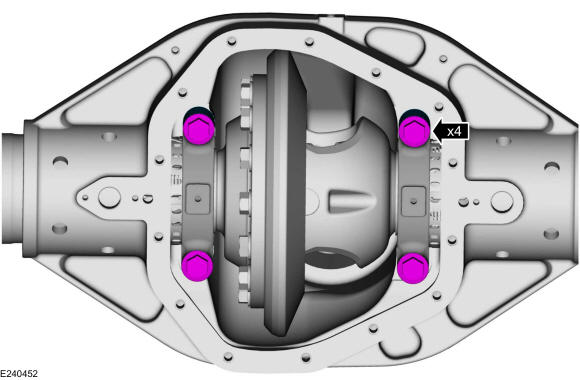

Tighten the differential bearing cap bolts.
Torque: 201 lb.ft (272 Nm)
- Check the ring gear backlash. Refer to: Ring Gear Backlash Adjustment .
-

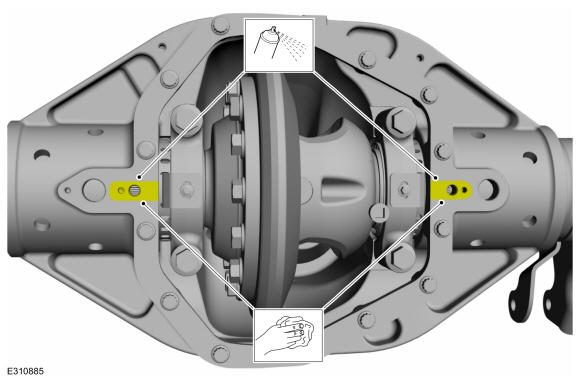

WARNING: Brake parts cleaner PM-4-A is irritating to skin, eye and respiratory tract. This product may cause central nervous system depression. Always consult the material safety data sheet before use. Due to the volume of PM-4-A used during cleaning procedure, the operator must ensure adequate local ventilation. The operator must wear an organic cartridge with particle filter respirator, eye protection (chemical goggles), Neoprene gloves and long sleeves. Failure to follow these instructions may result in serious personal injury.NOTE: Make sure that the mating faces are clean and free of foreign material.
Before installing the ABS sensor, inspect the sensor housing to make sure the cavity is clean and free from foreign material.
Material: Motorcraft® Metal Brake Parts Cleaner / PM-4-A, PM-4-B

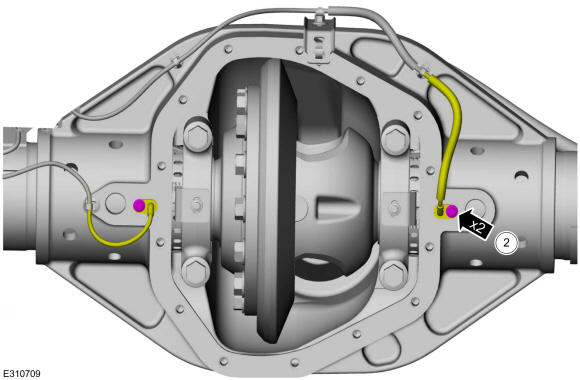

- Position the ABS sensors and install the bolts.
Torque: 80 lb.in (9 Nm)

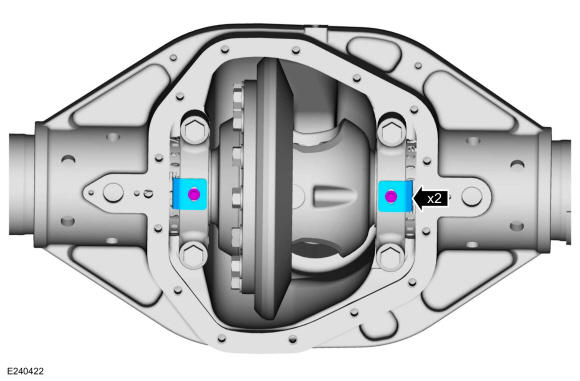

- Install the differential bearing adjuster locks and adjuster lock bolts.
Torque: 142 lb.in (16 Nm)
- Install the axle shafts. Refer to: Axle Shaft .
- Install the differential housing cover. Refer to: Differential Housing Cover .
