Differential Fluid Level Check
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
Check
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
- If draining is needed, fill to the specified volume.
- Clean the differential fluid drain plug.
- Remove the differential fluid drain plug. Refer to: Specifications .
Torque: 66 lb.ft (90 Nm)
-
- Clean the differential fluid fill plug.
- Remove the differential fluid fill plug.
-
NOTE: This step is only performed if draining was not required.

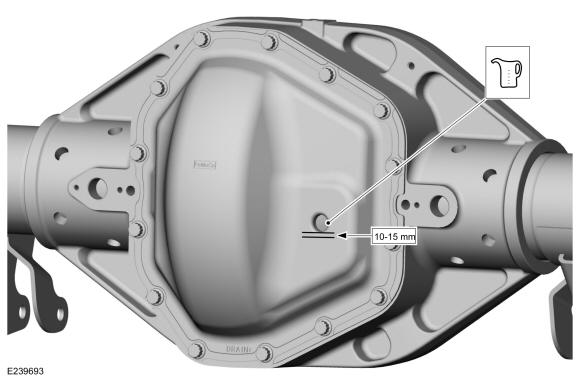

Check the differential gear lubricant. The differential gear lubricant level should be 10-15mm below the fluid level fill plug opening. Refer to: Specifications .
- Install the differential fluid fill plug.
Torque: 25 lb.ft (34 Nm)
