Differential Carrier: Disassembly
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The differential carrier is serviced as an assembly. The ring gear and differential bearings are the only serviced parts at this time.
- Remove the differential carrier. Refer to: Differential Carrier .

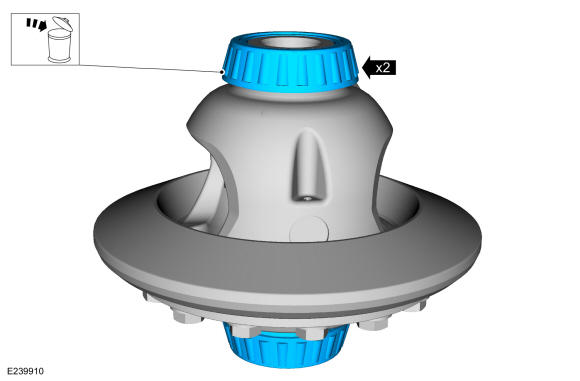

- Using the general equipment, remove and discard the differential bearings. Use the General Equipment: Hydraulic Press Use the General Equipment: Bearing Separator

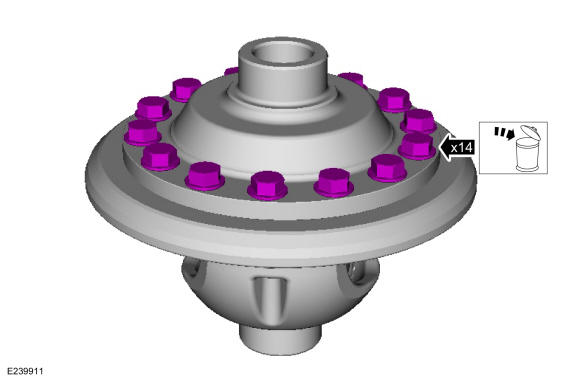

- Remove and discard the ring gear bolts.

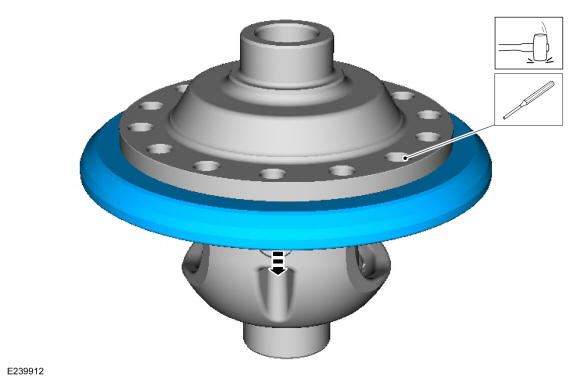

- Using the brass punch and a soft face hammer, remove the ring gear. Use the General Equipment: Punch Use the General Equipment: Copper Hammer

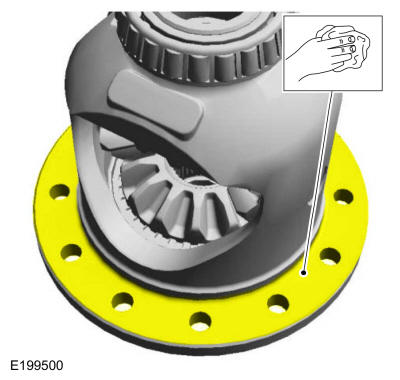

- Clean the differential ring gear flange.
