Drive Pinion Flange: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: The rear axle shafts must be removed for accurate pinion nut drag torque readings.
Remove the rear axle shaft. Refer to: Axle Shaft .
-
- Index mark the driveshaft and the pinion flange for reference during installation.
- Remove and discard the driveshaft to pinion flange bolts and straps.
-
NOTE: The driveshaft flange fits tightly on the flange pilot. Never hammer on the driveshaft or any of its components to disconnect the driveshaft flange from the flange pilot.
Support the driveshaft.
-
NOTE: Rotational torque of the drive pinion flange must be measured and recorded using a Nm (lb-in) torque wrench for correct pinion bearing preload when reassembled. This will be the torque-to-turn measurement.

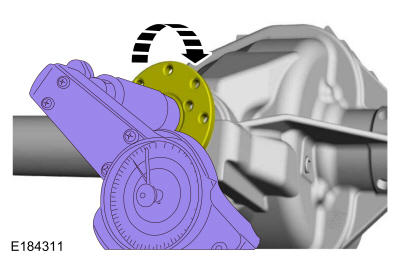

Using a dial type torque wrench, measure and record the rotational torque of the drive pinion.

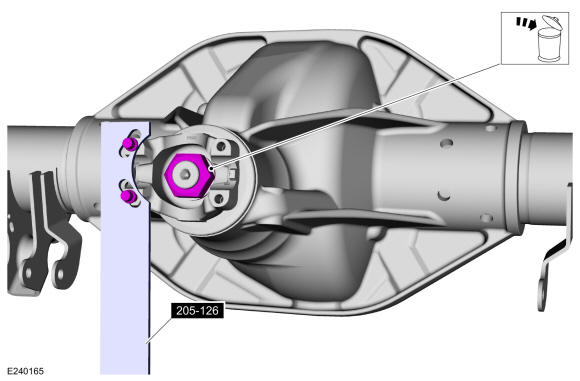

- Using the special tool to hold the pinion flange, remove and discard the pinion nut. Use Special Service Tool: 205-126 (T78P-4851-A) Holding Fixture, Drive Pinion Flange.
- Index mark the drive pinion flange and the drive pinion stem for reassembly.
- Using general equipment, remove the pinion flange and deflector. Use the General Equipment: Three Leg Puller
