Differential Carrier: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- If removed. Screw in the differential preload adjusters enough to install the differential carrier.

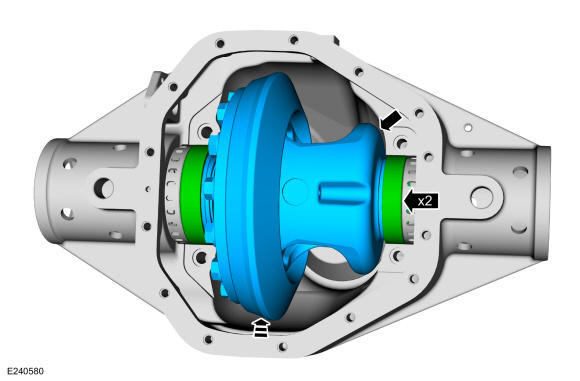

- Install the differential carrier and differential carrier bearing cups.
-
NOTE: The differential bearing caps and differential bearing cap bolts need to be installed in the same location as removed.NOTE: Only tighten the bolts finger tight at this stage.

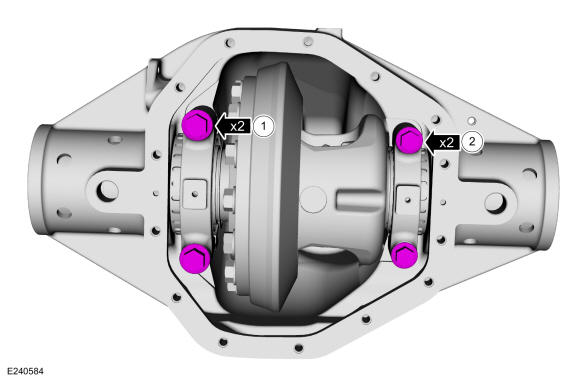

Install the differential bearing caps and differential bearing cap bolts hand tight.
- Set ring gear and pinion gear mesh.

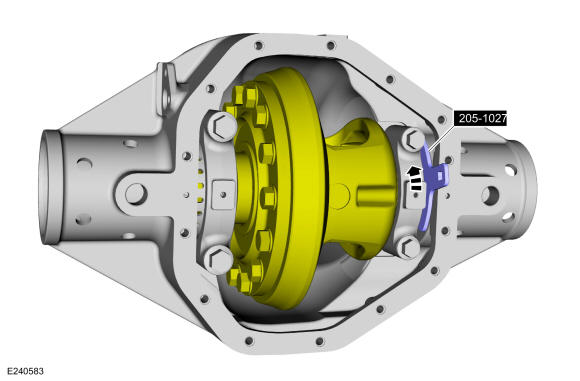

- Tighten the LH differential bearing preload adjuster until there is approximately zero gap between the ring gear and the pinion gear. Use Special Service Tool: 205-1027 Adjuster, Differential Bearing.
- Back off the LH differential bearing preload adjuster about 45 degrees.
- Tighten the RH differential bearing preload adjuster until the preload specification is achieved. Refer to: Specifications .
Use Special Service Tool: 205-1027 Adjuster, Differential Bearing.
-
NOTE: If the backlash needs to be adjusted after the backlash check, the differential carrier bearing cap bolts will need to be loosened.

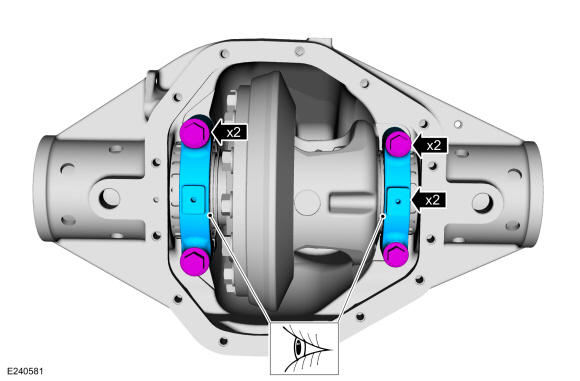

- Tighten the LH differential bearing cap bolts.
Torque: 201 lb.ft (272 Nm)
- Tighten the RH differential bearing cap bolts.
Torque: 102 lb.ft (138 Nm)
- Tighten the LH differential bearing cap bolts.
- Check the ring gear backlash. Refer to: Ring Gear Backlash Adjustment .
- Install the differential bearing adjuster locks and adjuster lock bolts.
Torque: 142 lb.in (16 Nm)
- If equipped. Connect the ELD adapter.
- If equipped. Install the ELD adaptor into the differential housing and the bolt.
Torque: 115 lb.in (13 Nm)
- Install the axle shafts. Refer to: Axle Shaft .
- Install the differential housing cover. Refer to: Differential Housing Cover .
