Differential Carrier: Assembly

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

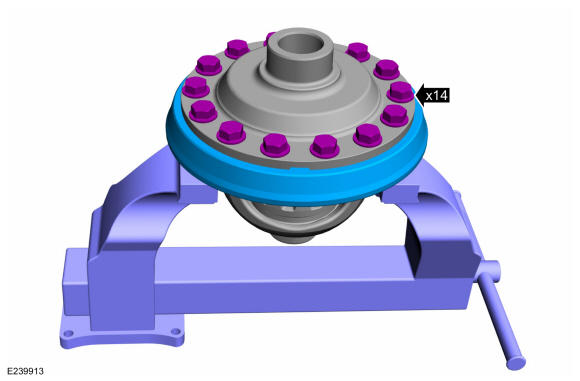

NOTE: Tighten the ring gear bolts in a cross pattern.

Install the ring gear and the new ring gear bolts. Use the General Equipment: Vise

Torque: Stage 1: 111 lb.ft (150 Nm) | Stage 2: 65 deg.

Courtesy of FORD MOTOR COMPANY

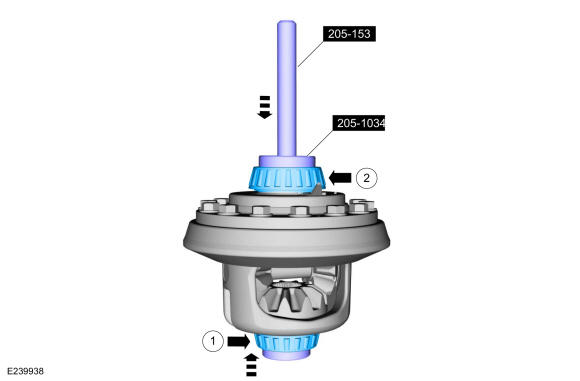

Using the special tools, install the new differential bearings.
1. Using the general tool, install the new differential bearing. Use Special Service Tool: 205-D044 (D81T-4221-A) Installer, Differential Carrier Bearing.
2. Using the special tools, install the new differential bearing. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-1034 Installer, Differential Bearing.
Courtesy of FORD MOTOR COMPANY
Install the differential carrier. Refer to: Differential Carrier .
