Differential Carrier - Vehicles With: Electronic Locking Differential (ELD): Assembly

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Clean and inspect the differential case.
    GFD404960Courtesy of FORD MOTOR COMPANY
  2. NOTE: Make sure that the locating dowels remain installed.

    Install the ELD locking plate dowels.

    GFD404959Courtesy of FORD MOTOR COMPANY
  3. Install the ELD cam ring.
    GFD404958Courtesy of FORD MOTOR COMPANY

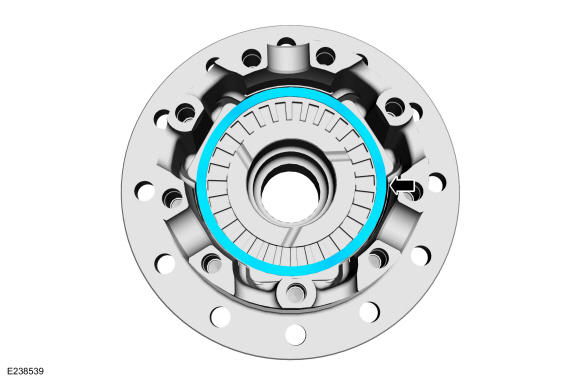

  4. Install the ELD cam ring wavy washer.
    GFD404957Courtesy of FORD MOTOR COMPANY

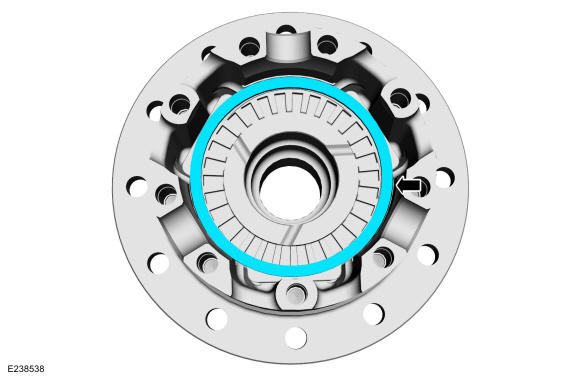

  5. Install the ELD cam ring washer.
    GFD404956Courtesy of FORD MOTOR COMPANY
  6. Install the ELD cam ring retaining circlip.
    GFD404955Courtesy of FORD MOTOR COMPANY
  7. Install the LH side gear shim.
    GFD404954Courtesy of FORD MOTOR COMPANY
  8. Lubricate and install the LH side gear.

    Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

    GFD404961Courtesy of FORD MOTOR COMPANY
  9. Lubricate and install the differential pinion shaft, pinion gears and pinion gear washers.

    Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

    GFD404962Courtesy of FORD MOTOR COMPANY
  10. Lubricate and install the RH side gear and side gear shim.

    Material: Motorcraft® SAE 75W-85 Premium Synthetic Hypoid Gear Lubricant / XY-75W85-QL (WSS-M2C942-A)

    GFD404963Courtesy of FORD MOTOR COMPANY
  11. Install the carrier case.

    1. Install the carrier case.
    2. Line up the index mark. Use the General Equipment: Vise

    GFD404964Courtesy of FORD MOTOR COMPANY
  12. Install the differential carrier case bolts.

    Torque: Stage 1: 46 lb.ft (63 Nm) | Stage 2: 90 deg.

    GFD404949Courtesy of FORD MOTOR COMPANY
  13. Install the ring gear.
    GFD404965Courtesy of FORD MOTOR COMPANY
  14. Install the new ring gear bolts.

    Torque: Stage 1: 46 lb.ft (63 Nm) | Stage 2: 60 deg.

    GFD404966Courtesy of FORD MOTOR COMPANY
  15. Install the ELD coil thrust plate.
    GFD404946Courtesy of FORD MOTOR COMPANY
  16. Install the ELD coil thrust bearing.
    GFD404967Courtesy of FORD MOTOR COMPANY
  17. Install the ELD coil.
    GFD404944Courtesy of FORD MOTOR COMPANY

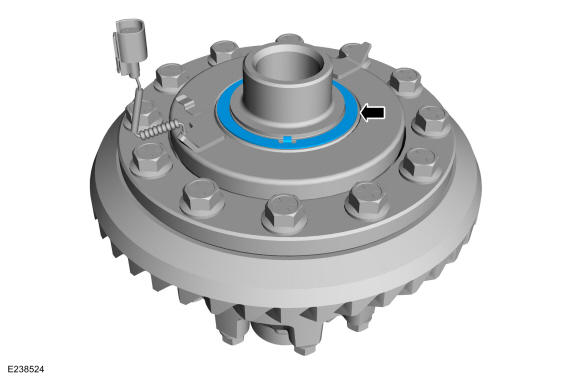

  18. Install the ELD coil retaining ring washer.
    GFD404943Courtesy of FORD MOTOR COMPANY
  19. Install the ELD coil retaining ring.
    GFD404942Courtesy of FORD MOTOR COMPANY
  20. Using the general equipment, install the new differential bearings. Use Special Service Tool: 205-D044 (D81T-4221-A) Installer, Differential Carrier Bearing. Use the General Equipment: Vise
    GFD404968Courtesy of FORD MOTOR COMPANY
  21. Install the differential carrier. Refer to: Differential Carrier .
