Drive Pinion: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure the drive pinion bearing cups are seated correctly or damage to the components may occur.

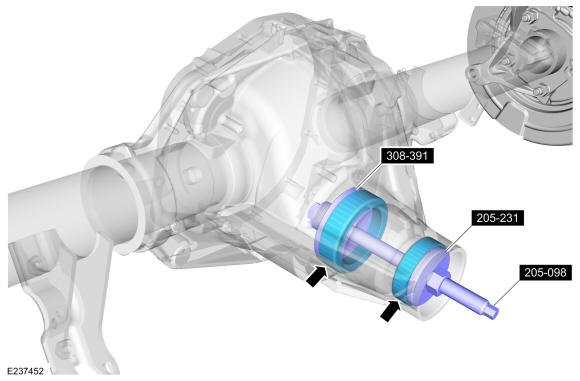

Using the special tools, install the new inner and new outer drive pinion bearing cups. Use Special Service Tool: 205-098 (T75T-1176-A) Drawbar, Rear Axle., 205-231 (T85T-4616-AH) Installer, Drive Pinion Bearing., 308-391 Installer, Input Shaft Bearing Cup.

Courtesy of FORD MOTOR COMPANY
NOTE: This step duplicates final drive pinion bearing preload

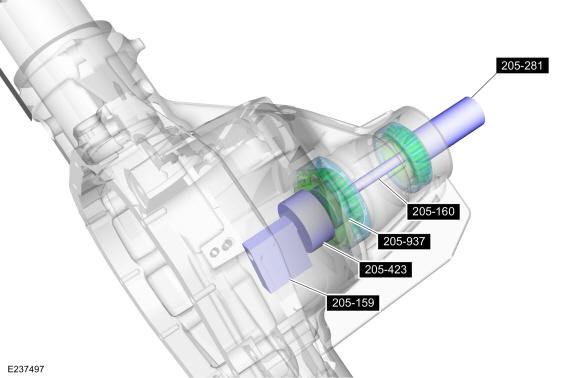

Assemble the special tools in the differential housing. Use Special Service Tool: 205-159 (T80T-4020-F42) Adapter for 205-S156 Pinion Depth Gauge., 205-160 (T80T-4020-F43) Adapter for 205-S156 Pinion Depth Gauge., 205-281 (T88T-4020-B) Depth Gauge/Aligner, Drive Pinion (Handle)., 205-423 Depth Gauge, Drive Pinion (10 1/2)., 205-937 Adapter, Pinion Aligning.

Torque: Stage 1: Tighten to: 19 lb.in (2.2 Nm) | Stage 2: Record rotational Torque: 3turn(s)

Courtesy of FORD MOTOR COMPANY

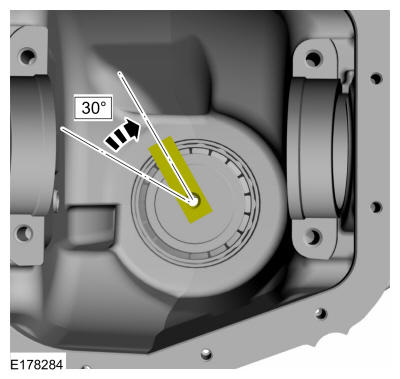

Check for proper location of special tools.

Courtesy of FORD MOTOR COMPANY

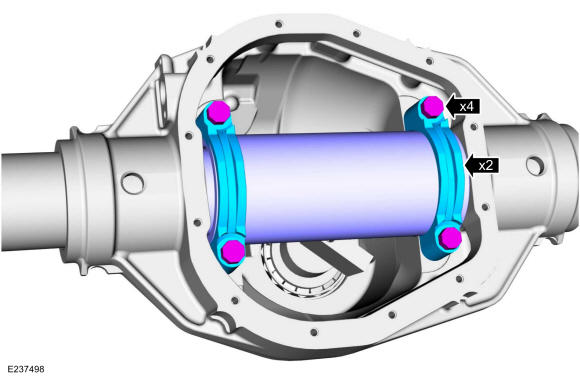

Position the tool and install the differential bearing caps and differential bearing cap bolts. Use Special Service Tool: 205-D038 (D81T-4020-F51) Gauge Tube.
Torque: 87 lb.ft (118 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Drive pinion bearing adjustment shims must be flat and clean.

NOTE: A slight drag should be felt for correct drive pinion bearing adjustment shim selection. Do not attempt to force the drive pinion bearing adjustment shim between the gauge block and the gauge tube. This will minimize selection of a drive pinion bearing adjustment shim thicker than required, which results in a deep tooth contact in the final assembly of integral axle assemblies.

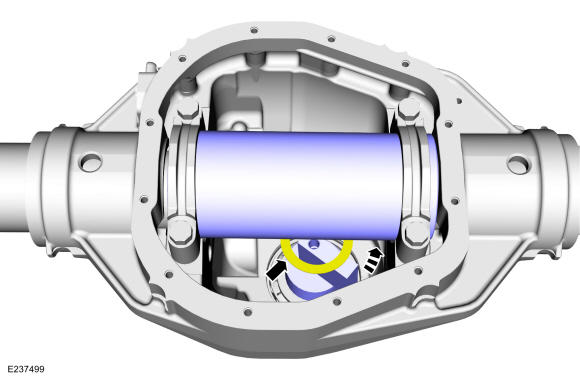

Use a drive pinion bearing adjustment shim as a gauge for drive pinion bearing adjustment shim selection.

Courtesy of FORD MOTOR COMPANY
NOTE: The differential bearing caps need to stay in the correct orientation for installation.

Remove the differential bearing cap bolts and differential bearing caps, remove the special tools. Use Special Service Tool: 205-D038 (D81T-4020-F51) Gauge Tube.

Courtesy of FORD MOTOR COMPANY
Remove the special tools. Use Special Service Tool: 205-159 (T80T-4020-F42) Adapter for 205-S156 Pinion Depth Gauge., 205-160 (T80T-4020-F43) Adapter for 205-S156 Pinion Depth Gauge., 205-281 (T88T-4020-B) Depth Gauge/Aligner, Drive Pinion (Handle)., 205-423 Depth Gauge, Drive Pinion (10 1/2)., 205-937 Adapter, Pinion Aligning.

Courtesy of FORD MOTOR COMPANY

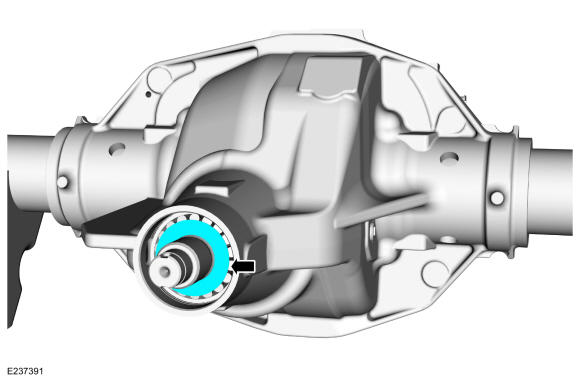

Install the selected inner drive pinion bearing shim.

Courtesy of FORD MOTOR COMPANY
Install the new drive pinion inner bearing until it is firmly seated on the drive pinion. Use Special Service Tool: 205-232 (T85T-4621-AH) Installer, Drive Pinion Bearing.. Use the General Equipment: Hydraulic Press

Courtesy of FORD MOTOR COMPANY
Install the new drive pinion collapsible spacer.

Courtesy of FORD MOTOR COMPANY
Install the drive pinion and the new drive pinion outer bearing.

Courtesy of FORD MOTOR COMPANY
Install the new outer differential pinion bearing, differential outer differential pinion shim and the differential pinion.

Courtesy of FORD MOTOR COMPANY
NOTE: When installing the drive pinion flange and pinion nut with no differential carrier installed, the drag torque (torque to turn) should be 2 to 3 Nm (16-29 in-lbs).

Install the drive pinion seal. Refer to: Drive Pinion Seal .
Install the differential carrier. Refer to: Differential Carrier .
