Drive Pinion Seal: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Clean and lube the pinion seal.
- Clean the pinion seal mating surface.
- Lube the pinion seal lip.
Material: Motorcraft® Premium Long-Life Grease / XG-1-E1 (ESA-M1C75-B)

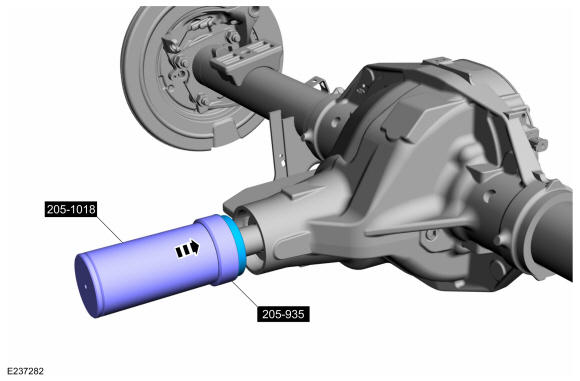

- Using the special tools, install the drive pinion seal. Use Special Service Tool: 205-935 Installer, Pinion Seal., 205-1018 Installation Tube.
- Install the drive pinion flange. Refer to: Drive Pinion Flange .
