Differential Housing Cover: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
  2. Remove the differential housing cover bolts and if equipped, the differential housing cover clamp.
    GFD405059Courtesy of FORD MOTOR COMPANY
  3. Remove the differential housing cover.
    GFD405060Courtesy of FORD MOTOR COMPANY

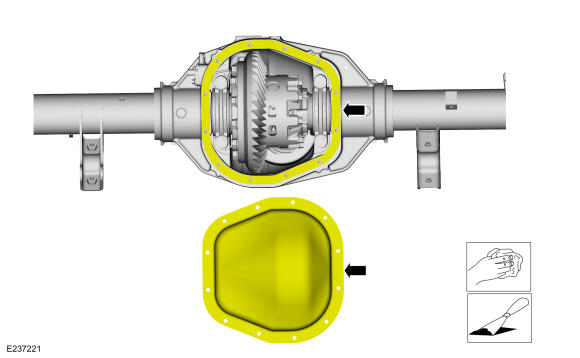

  4. NOTE: Remove all of the silicone gasket and make sure the surfaces are free of oil before applying the new silicone gasket.

    Clean the gasket mating surface of the axle and the differential housing cover. Refer to: RTV Sealing Surface Cleaning and Preparation .

GFD405061Courtesy of FORD MOTOR COMPANY
