Differential Carrier: Installation

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

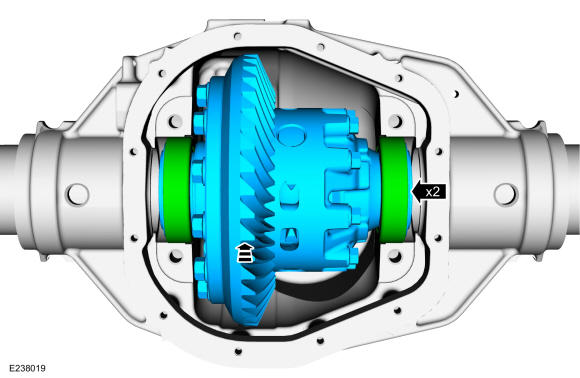

  1. NOTE: Have the selected shims available at this time. It will be required to hold the differential carrier and the differential carrier bearing cups in until shims are installed.

    Install the differential carrier and the differential carrier bearing cups.

    GFD405052Courtesy of FORD MOTOR COMPANY

    Vehicle equipped with ELD (Electronic Locking Differential)

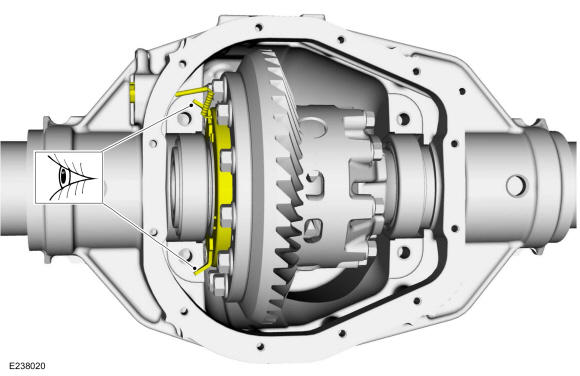

  2. Install the differential carrier with the tabs on the ELD coil up against the differential bearing cap mounting surface.
    GFD405053Courtesy of FORD MOTOR COMPANY

    All vehicles

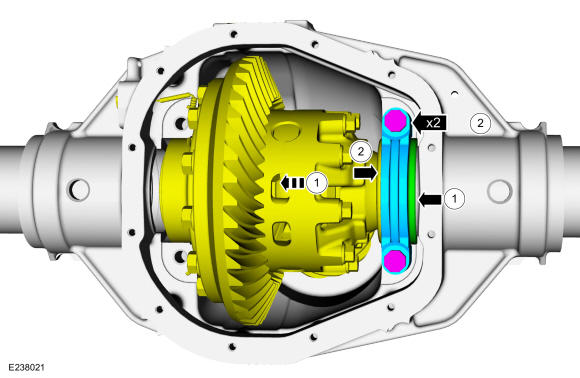

  3. NOTE: Differential bearing shims are to be installed with the chamfer facing outboard.

    • Position the differential to the LH side of the differential housing and install the RH selected ring gear back lash shim.

    • NOTE: The differential bearing cap bolts should only be finger tight at this time.

      Install the RH differential bearing cap and the differential bearing cap bolts.

    GFD405054Courtesy of FORD MOTOR COMPANY

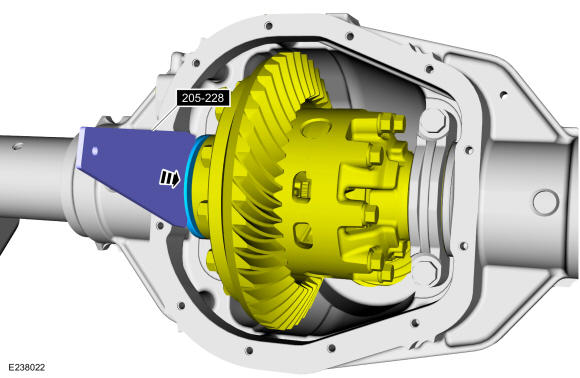

  4. Using the special tool and a copper hammer, install the LH selected ring gear back lash shim. Use Special Service Tool: 205-228 (T85T-4067-AH) Installer, Differential Shim.. Use the General Equipment: Copper Hammer
    GFD405055Courtesy of FORD MOTOR COMPANY

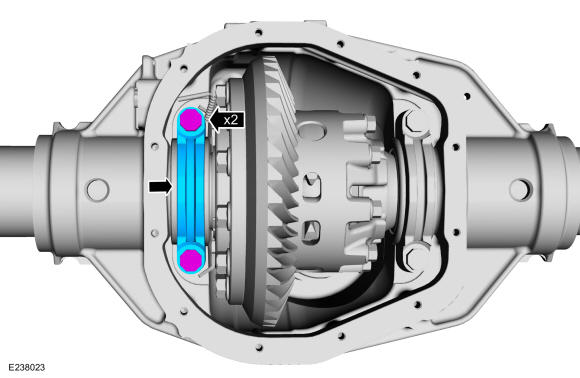

  5. NOTE: The differential bearing cap bolts should only be finger tight at this time.

    Install the LH differential bearing cap and the differential bearing cap bolts.

    GFD405056Courtesy of FORD MOTOR COMPANY

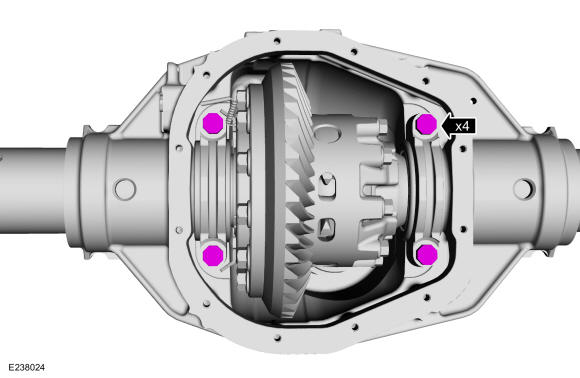

  6. Tighten the differential bearing cap bolts.

    Torque: 87 lb.ft (118 Nm)

    GFD405057Courtesy of FORD MOTOR COMPANY

    All vehicles

  7. Check the ring gear backlash. Refer to: Ring Gear Backlash Adjustment .

    Vehicle equipped with ELD (Electronic Locking Differential)

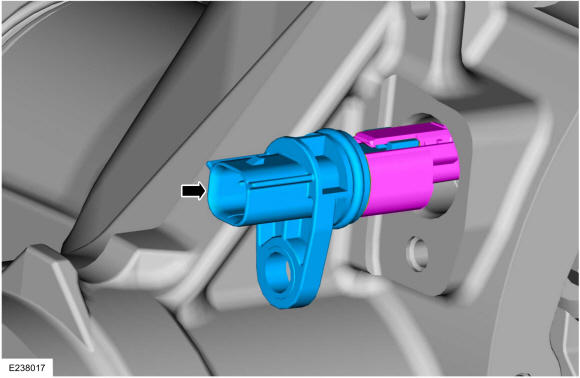

  8. Connect the ELD coil electrical connector to the ELD connector adaptor.
    GFD405050Courtesy of FORD MOTOR COMPANY

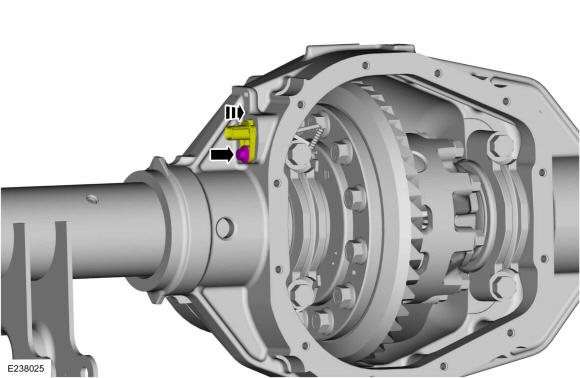

  9. Install the ELD connector adaptor into the axle assembly housing, install the ELD connector adaptor bolt.

    Torque: 62 lb.in (7 Nm)

    GFD405058Courtesy of FORD MOTOR COMPANY

    All vehicles

  10. Install the axle shafts. Refer to: Axle Shaft .
  11. Install the differential housing cover. Refer to: Differential Housing Cover .
