Drive Pinion Flange and Seal: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
-
NOTE: The front brake pads must be removed for accurate pinion bearing preload drag torque recording and adjustment.
Remove the front brake pads. Refer to: Brake Pads - F-250/F-350 . Refer to: Brake Pads - F-450/F-550 .

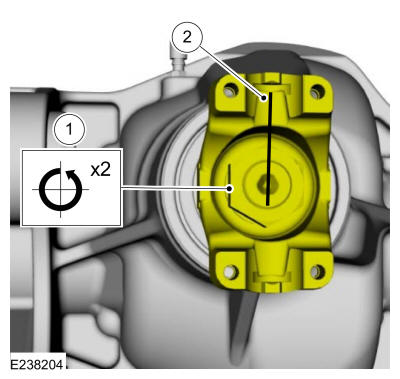

- Remove and discard the front driveshaft U-joint to pinion flange retaining strap bolts and retaining straps.
- Index-mark the front driveshaft U-joint to the pinion flange. Position aside and support the front driveshaft.
-
NOTE: Rotational torque of the drive pinion flange must be measured and recorded using a Nm (lb-in) torque wrench for correct pinion bearing preload when reassembled. This will be the torque-to-turn measurement.
- Using a dial type torque wrench, measure and record the rotational torque of the drive pinion.
- Index-mark the pinion flange and the drive pinion gear.

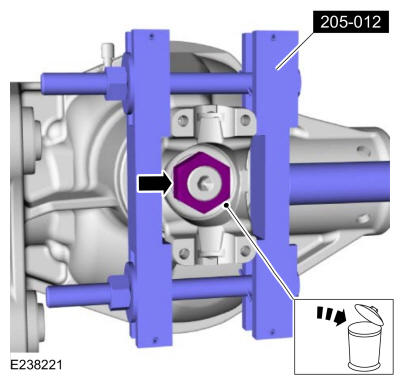

- Using the special tool, remove and discard the pinion nut. Use Special Service Tool: 205-012 (T57T-4851-B) Holding Fixture, Drive Pinion Flange.

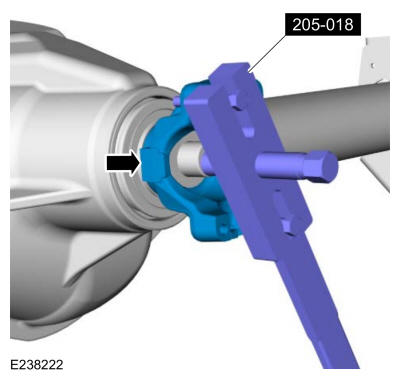

- Using the special tool, remove the pinion flange. Use Special Service Tool: 205-018 (T65L-4851-B) Remover, Drive Pinion Flange.
- Using the special tool, remove and discard the pinion seal. Use Special Service Tool: 307-001 (TOOL-1175-AC) Remover, Bushing., 100-001 (T50T-100-A) Slide Hammer.

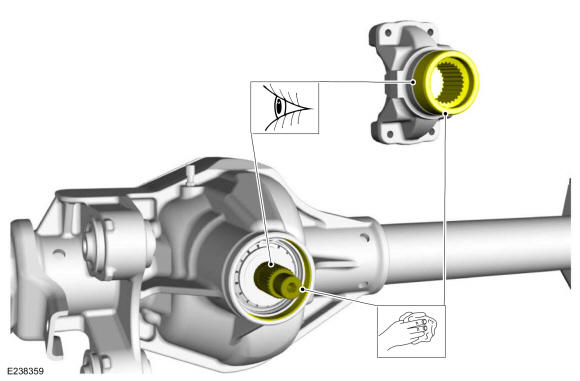

- Clean and inspect the pinion flange mating surface and pinion seal surface.
