Differential Ring Gear and Pinion: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the differential carrier. Refer to: Differential Carrier .
  2. Remove the drive pinion flange and seal. Refer to: Drive Pinion Flange and Seal .
  3. Remove the outer drive pinion oil slinger.
    GFD405187Courtesy of FORD MOTOR COMPANY
  4. Using the special tool and a soft face mallet, tap the drive pinion free of the of the drive pinion outer bearing. Use Special Service Tool: 205-1021 Protector, Pinion Thread.
    GFD405188Courtesy of FORD MOTOR COMPANY
  5. Remove the pinion through the rear of the differential housing.
    GFD405190Courtesy of FORD MOTOR COMPANY

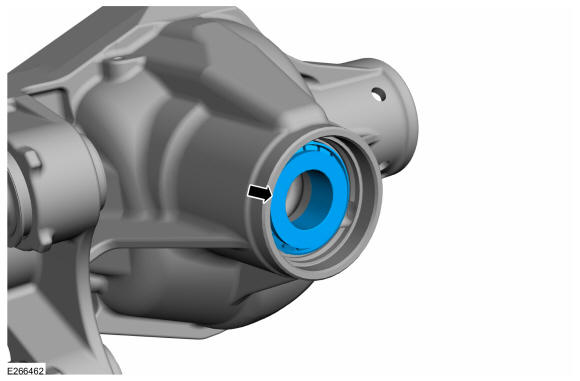

  6. Remove the outer drive pinion bearing.
    GFD405215Courtesy of FORD MOTOR COMPANY
  7. Using the general equipment, remove the inner drive pinion bearing.. Use the General Equipment: Bearing Separator
    GFD405191Courtesy of FORD MOTOR COMPANY
  8. Remove and discard the drive pinion collapsible spacer.
    GFD405192Courtesy of FORD MOTOR COMPANY
  9. Using the general equipments, remove and discard the drive pinion inner and outer bearing cups.. Use the General Equipment: Copper Hammer. Use the General Equipment: Punch
    GFD405193Courtesy of FORD MOTOR COMPANY
  10. If necessary, remove and discard the drive pinion oil baffle.
    GFD405194Courtesy of FORD MOTOR COMPANY

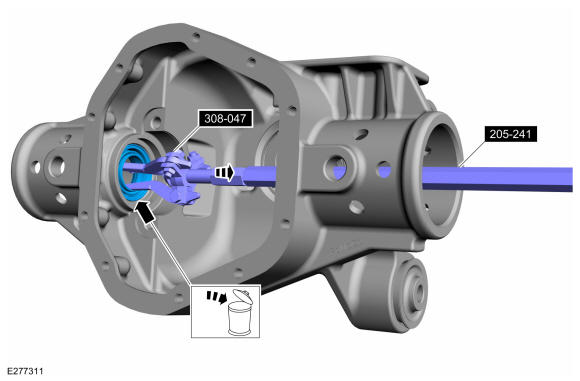

  11. NOTE: Left side shown, right side similar.

    Using a special tool, drive the inner axle shaft oil seal out of the differential housing from the axle tube. Discard the seal. Use Special Service Tool: 308-047 (T77F-1102-A) Remover, Bearing Cup., 205-241 (T86P-3514-A) Remover, Halfshaft.

    GFD405216Courtesy of FORD MOTOR COMPANY
  12. NOTE: Place the component in the vise.

    Using the special tools, remove and discard the differential bearings. Use Special Service Tool: 205-430 Collets, Differential Carrier Bearing., 205-431 Retaining Ring, Differential Carrier Bearing., 205-432 Step Plate, Differential Carrier Bearing., 308-052 (T77J-7025-B) Remover/Installer, Bearing Tube., 308-092 (T84T-7025-B) Removal Screw, Bearing Tube.. Use the General Equipment: Vise

    GFD405148Courtesy of FORD MOTOR COMPANY
  13. NOTE: Wire the shims together and mark from which side they were removed.

    Remove the differential bearing shims.

    GFD405149Courtesy of FORD MOTOR COMPANY
  14. Remove and discard the ring gear bolts.
    GFD405131Courtesy of FORD MOTOR COMPANY
  15. NOTE: Care should be taken not to damage the differential ring gear bolt hole threads.

    Using the general equipments, separate the ring gear from the differential case.. Use the General Equipment: Copper Hammer. Use the General Equipment: Punch

GFD405132Courtesy of FORD MOTOR COMPANY
