Differential Carrier: Installation
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Position the differential assembly in the axle housing.
-
NOTE: Match the positioning of the mating letters on the bearing caps and the differential housing.
Install the bearing caps and the bolts.
Torque: 80 lb.ft (108 Nm)
- Check the ring gear backlash. Refer to: Ring Gear Backlash Adjustment .

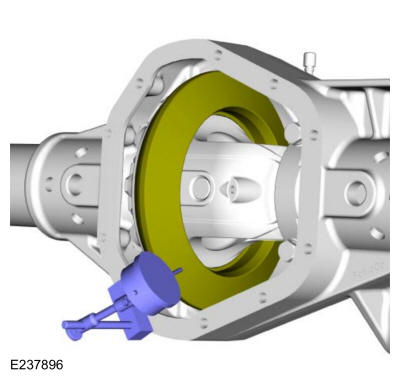

- Using the general equipment, measure the backlash at 3 equally spaced points.
- The backlash must be within the specifications and cannot vary more than 0.05 mm (0.002 in) between points checked.
- Make the necessary corrections by moving shims from one side of the differential case to the other, until the correct backlash adjustment is achieved.
- Correct for low backlash by moving the ring gear away from the pinion.
- Correct for high backlash by moving the ring gear toward the pinion.. Use the General Equipment: Dial Indicator
- Apply a new continuous bead of sealant to the differential housing cover as shown.
Material: Motorcraft® High Performance Engine RTV Silicone / TA-357 (WSE-M4G323-A6)
- Install the differential cover and differential cover bolts.
Torque: 45 lb.ft (61 Nm)
- Attach the RH outer tie rod end and drag link to the wheel knuckle and install the new tie rod end nut.
Torque: 85 lb.ft (115 Nm)

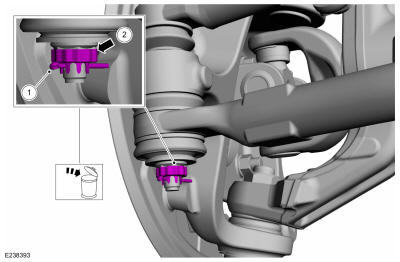

- Install the RH outer tie-rod end retainer cap and cotter pin.
- Install the axle shafts and seals. Refer to: Axle Shaft Seal .
