Axle Shaft Seal: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the wheel bearing and wheel hub assemblies. Refer to: Front Wheel Bearing and Wheel Hub .

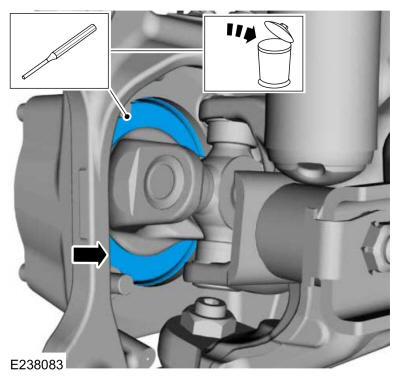

- Using a general equipment, drive the axle shaft knuckle seal out of the wheel knuckle. Discard the seal.. Use the General Equipment: Punch

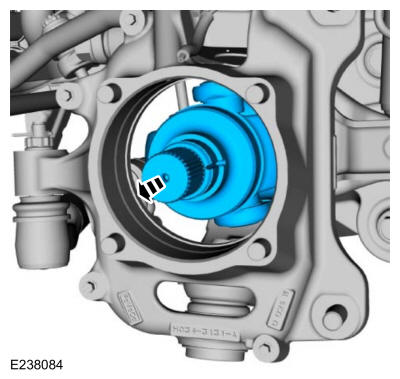

- Remove the axle shaft and knuckle seal.

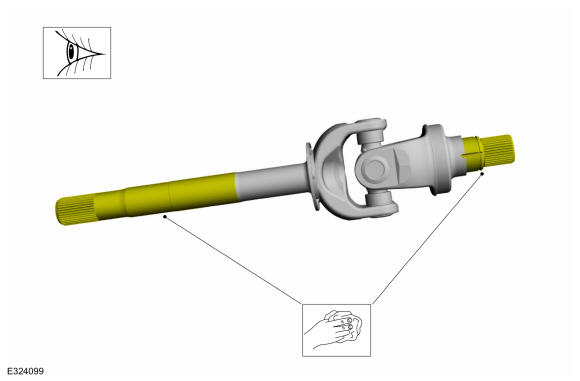

- Clean and inspect the axle shaft.
