Axle Shaft Seal - Inner: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the differential carrier. Refer to Differential Carrier .
-

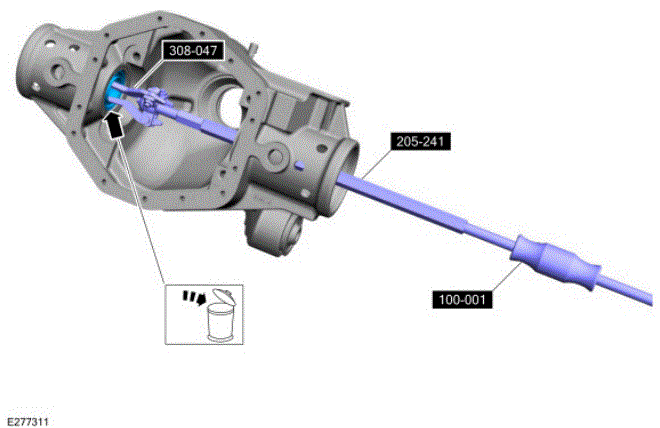

NOTE: Right side shown, left side similar.
Using a special tool, drive the inner axle shaft oil seal out of the differential housing from the axle tube. Discard the seal.
Use Special Service Tool: 308-047 (T77F-1102-A) Remover, Bearing Cup , 205-241 (T86P-3514-A) Remover, Halfshaft , 100-001 (T50T-100-A) Slide Hammer .
