Driveshaft Slip Yoke: Disassembly

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the driveshaft assembly. Refer to: Rear Driveshaft .

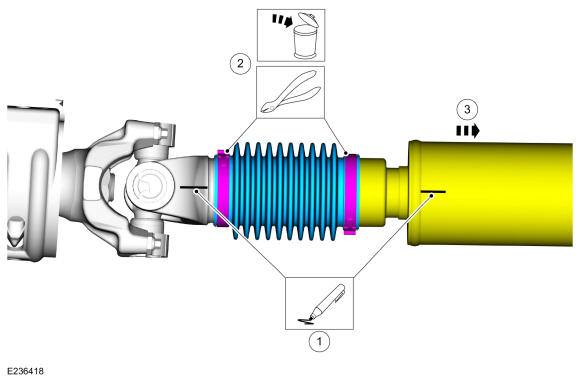

  2. Separate the slip yoke.

    1. Index mark the slip yoke.
    2. Cut and discard the clamps.
    3. Separate the slip yoke from the stub shaft and discard the boot.

GFD404828Courtesy of FORD MOTOR COMPANY
