Wheel Hub: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the axle shaft. Refer to: Axle Shaft .
  2. Remove the brake disc. Refer to: Brake Disc .
  3. NOTE: Under no circumstances are power tools to be used when carrying out these operations or damage to the component may occur.
    NOTE: The wheel hub nut should not ratchet during this operation. If it does, check the Ford Axle Locknut Socket tabs for wear. They should be a minimum of 5.08 mm (0.2 in) or damage to the components can occur.
    NOTE: The wheel hub nuts are RH thread (right hub) and LH thread (left hub).
    NOTE: Apply inward pressure to the socket to separate the ratcheting components of the hub nut.

    Using the special tool, remove the hub nut. Use Special Service Tool: 205-282 (T88T-4252-A) Socket, Wheel Hub Nut.

    GFD405125Courtesy of FORD MOTOR COMPANY
  4. Remove the outer wheel hub bearing.
    GFD405126Courtesy of FORD MOTOR COMPANY

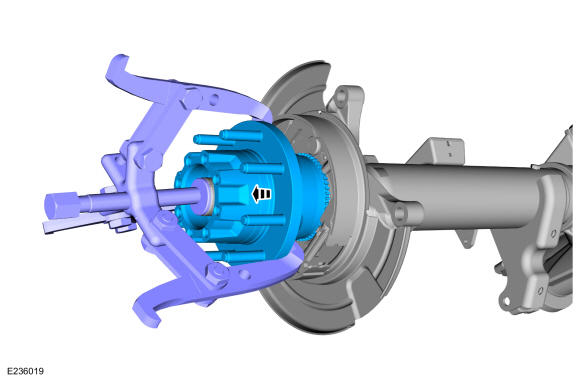

  5. Using the special tool and the puller, remove the wheel hub. Use Special Service Tool: 205-D018 Adapter. Use the General Equipment: Puller
    GFD405127Courtesy of FORD MOTOR COMPANY
  6. Remove and discard the wheel hub inner seal. Refer to: Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups .
