Wheel Bearings, Wheel Hub Seal and Wheel Bearing Cups: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the wheel hub. Refer to: Wheel Hub .

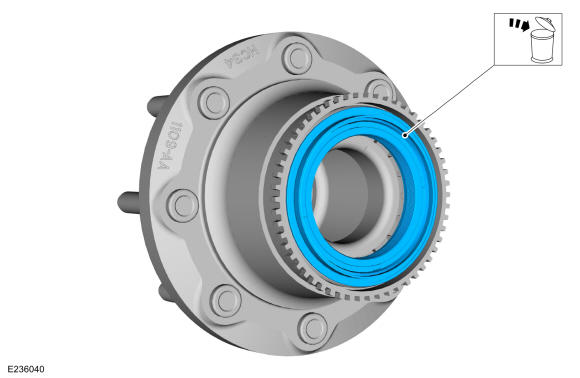

  2. Remove and discard the wheel hub inner seal.
    GFD405118Courtesy of FORD MOTOR COMPANY
  3. Remove the inner wheel hub bearing.
    GFD405119Courtesy of FORD MOTOR COMPANY

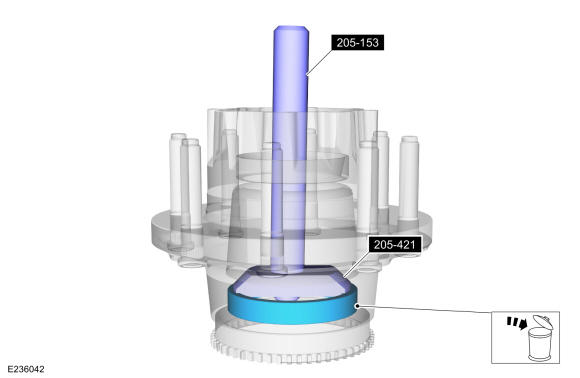

  4. Using the specials tools, remove and discard the inner wheel bearing cup. Use Special Service Tool: 205-153 (T80T-4000-W) Handle., 205-421 Remover, Wheel Hub Inner Bearing Cup (10 1/2).
    GFD405120Courtesy of FORD MOTOR COMPANY

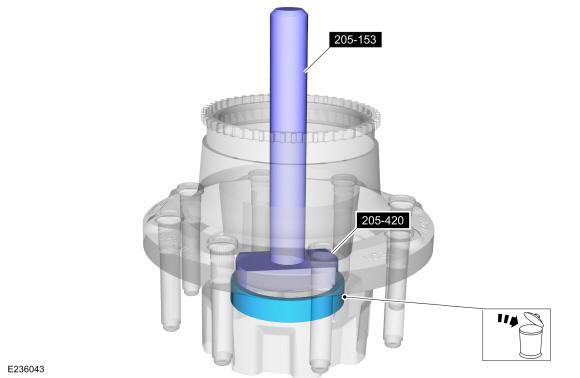

  5. Using the specials tools, remove and discard the outer wheel bearing cup. Use Special Service Tool: 205-420 Remover, Wheel Hub Outer Bearing Cup (10 1/2)., 205-153 (T80T-4000-W) Handle.
GFD405121Courtesy of FORD MOTOR COMPANY
