Axle Shaft: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
When removing axle shafts and the vehicle is on the ground surface the tires need to be chocked or the parking brake needs to be set.
NOTE:
The wheels and tires do not have to be removed in order to remove the axle shafts.
NOTE:
Removal steps in this procedure may contain installation details.
-
NOTE: Torque the axle shaft bolts in a cross pattern.

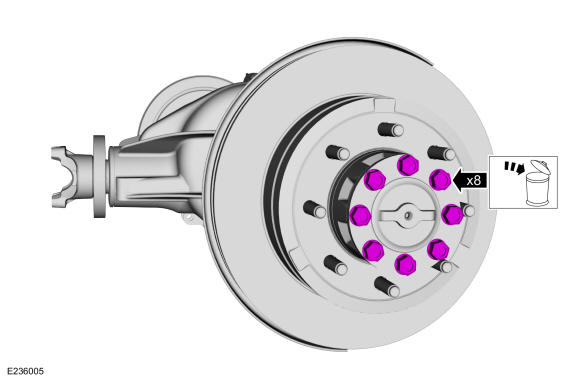

Remove and discard the axle shaft bolts.
Torque: Stage 1: 37 lb.ft (50 Nm) | Stage 2: 90 deg.

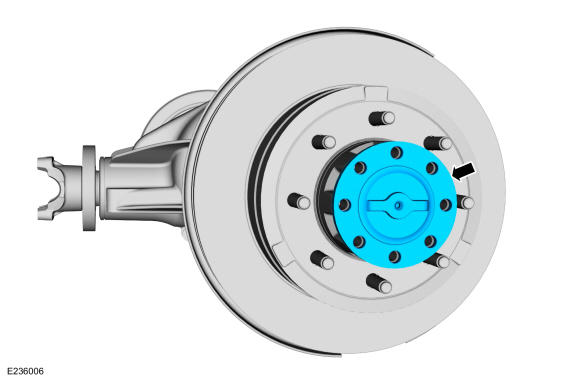

- Remove the axle shaft.

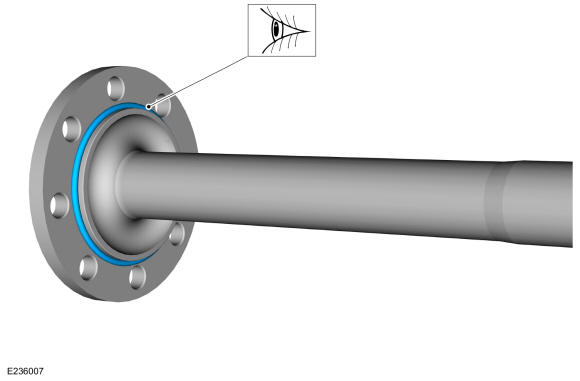

- Remove and inspect the O-ring for damage. Replace if necessary.

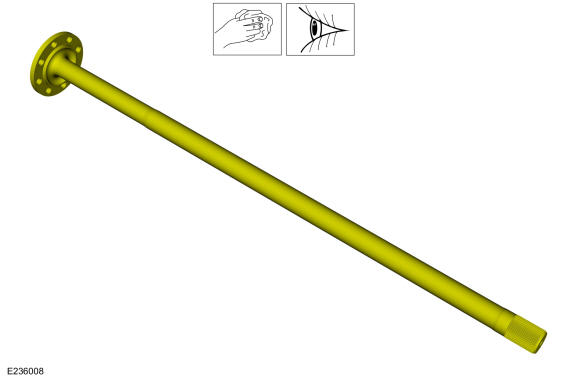

- Clean and inspect the axle shaft. Replace if necessary.

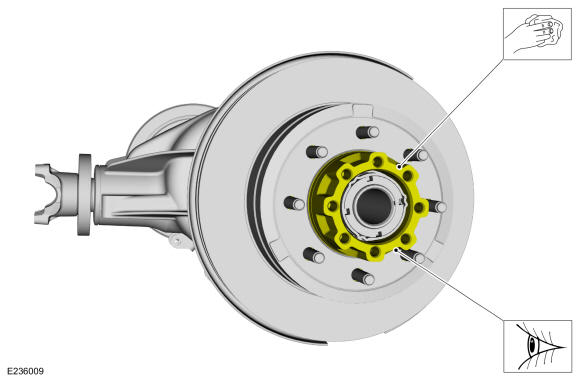

- Clean and inspect the hub-to-axle shaft mating surface.
