Lifting and Jacking Points - Front

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

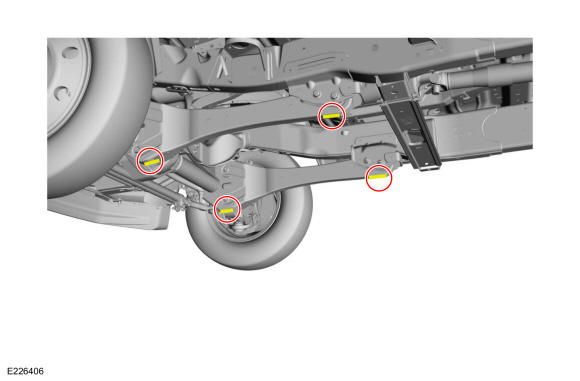

Use the following illustrations to determine the recommended lifting points for the vehicle being lifted. The lifting points will vary depending on the type of hoist being used and the vehicle configuration.

Courtesy of FORD MOTOR COMPANY

NOTE: When raising a vehicle on a hoist, use care when positioning the hoist adapters prior to lifting the vehicle so that hoist arms do not interfere with the surrounding suspension or steering linkage components.

NOTE: Jacking the vehicle is intended to be used in an emergency for changing a deflated tire. To avoid damage to the vehicle, never use a jack to hoist the vehicle for any other purpose.

Only the specified jacking points may be used for jacking and supporting the vehicle
