Trailer Module (TRM): Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Adjustable brake pedal and bracket shown, fixed brake pedal and bracket similar.
All vehicles
-
NOTE: This step is only necessary if the TRM is being replaced.
Using a diagnostic scan tool, begin the PMI process for the TRM following the on-screen instructions.
Vehicles equipped adjustable pedals
- Move the pedals to the full forward (away from the driver) position.
All vehicles

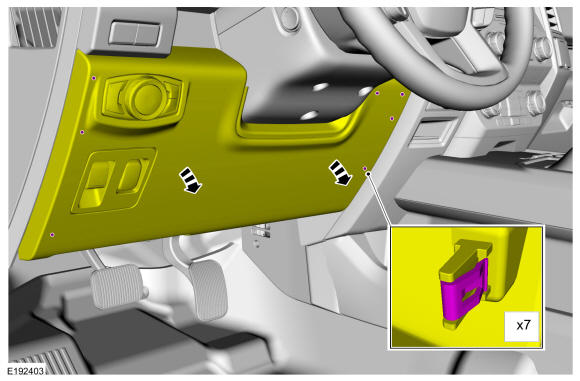

- Pull outward on the steering column opening cover detaching the clips and allow the cover to hinge downward.

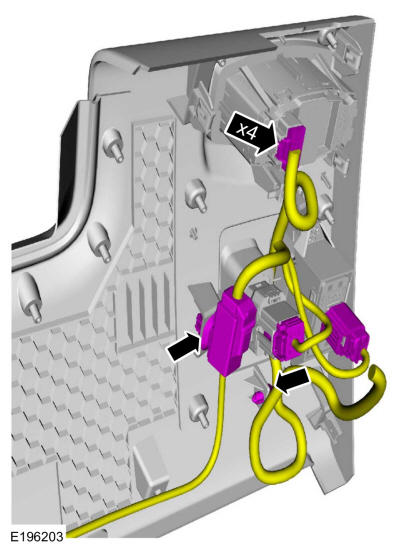

- Disconnect the electrical connector(s) and the wiring retainer(s).

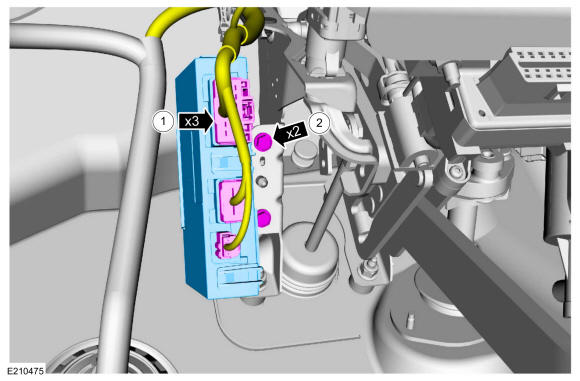

- Remove the TRM.
- Disconnect the TRM electrical connectors.
- Remove the bolts.
Torque: 106 lb.in (12 Nm)
