Stoplamp Switch: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Do not press or pull on brake pedal when installing or removing the stoplamp switch otherwise misadjustment or damage to the stoplamp switch can occur.

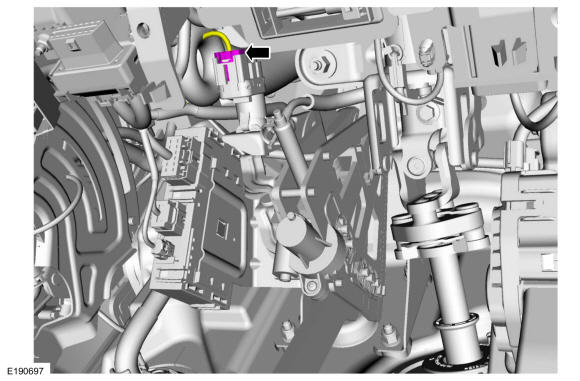

- Disconnect the stoplamp switch electrical connector.

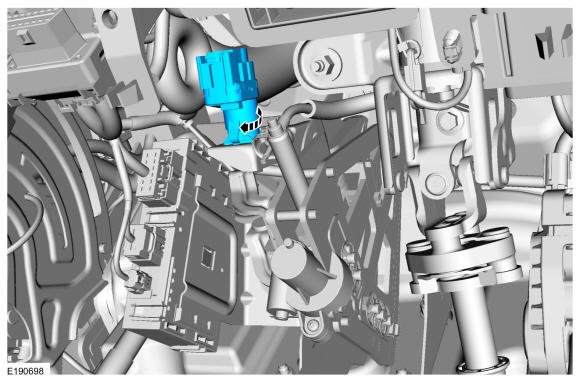

- Rotate the switch 1/4 turn clockwise and remove the stoplamp switch.
