Spot Lamp Switch: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding

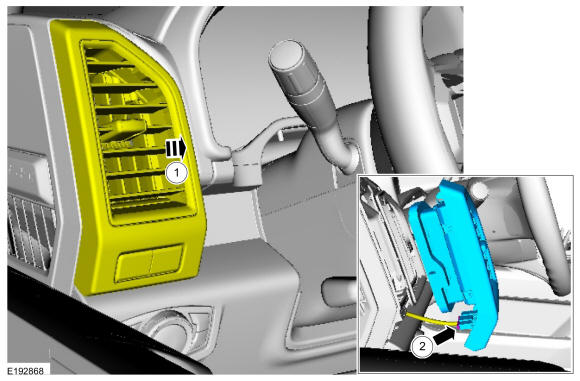

- Remove the LH instrument panel vent.
- Position the LH instrument panel vent forward.
- Disconnect the LH instrument panel vent electrical connector.

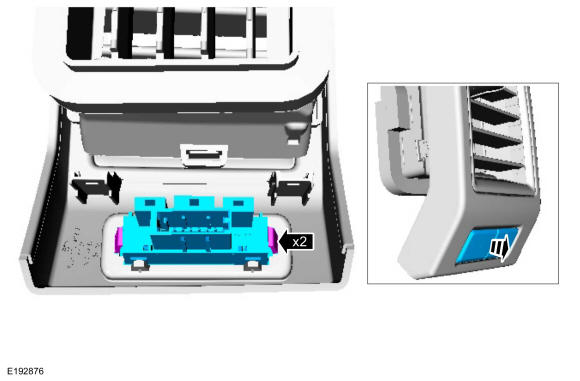

- Release the locking tabs and remove the spot lamp switch.
