Rear Lamp Bulb: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
All vehicles
- Remove the rear lamp assembly. Refer to: Rear Lamp Assembly .
Stoplamp bulbs - vehicles with pick-up box

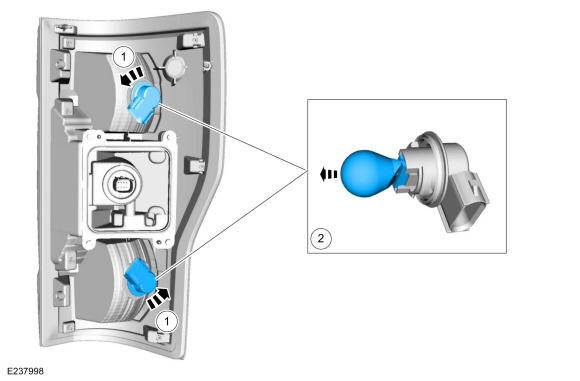

- Remove the stoplamp bulb.
- Turn the stoplamp bulb holder counterclockwise and remove the bulb holder.
- Separate the stoplamp bulb from the bulb holder.
Stoplamp bulbs - vehicles with frame mounted rear lamps

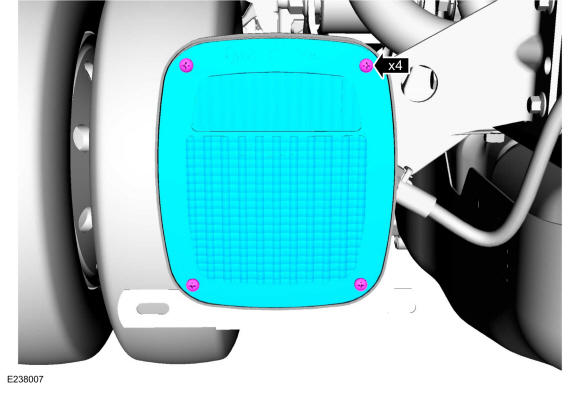

- Remove the screws and the rear lamp assembly lens.

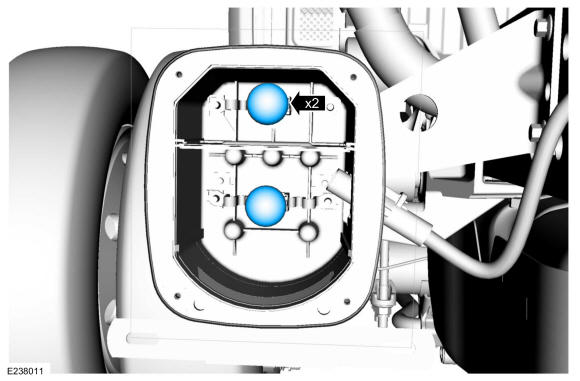

- Remove the stoplamp bulbs.
Reversing lamp bulb - vehicles without side obstacle detection

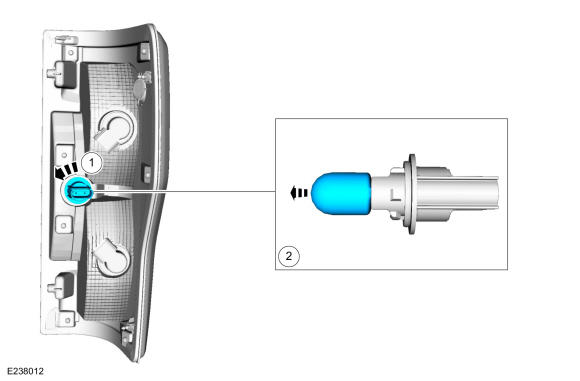

- Remove the reversing lamp bulb.
- Turn the reversing lamp bulb holder counterclockwise and remove the bulb holder.
- Separate the reversing lamp bulb from the bulb holder.
Reversing lamp bulb - vehicles with side obstacle detection
- Remove the screws and the side obstacle detection module assembly.

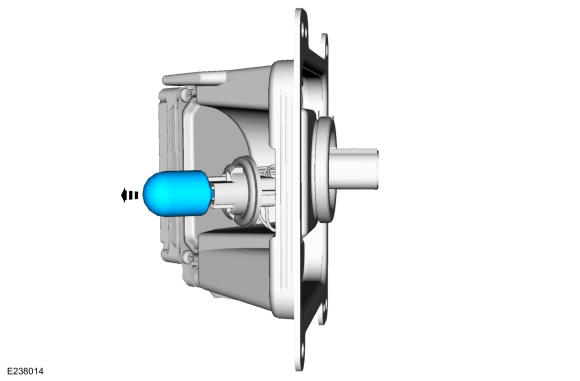

- Remove the reversing lamp bulb.
