Rear Lamp Assembly: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: LH rear lamp assembly is shown, RH rear lamp assembly is similar.

Rear lamp assembly with side obstacle detection - pick-up box mounted

NOTE: This step is only necessary when installing a new side obstacle detection (SOD) module.

NOTE: If installing a new side obstacle detection (SOD) control module, it is necessary to upload the module configuration information to the scan tool prior to removing the module. This information must be downloaded into the new SOD control module after installation

Using a diagnostic scan tool, begin the PMI process for the side obstacle detection (SOD) control module following the on-screen instructions.

Rear lamp assembly without side obstacle detection - pick-up box mounted

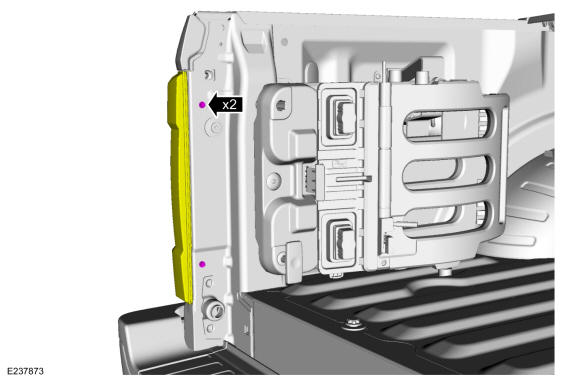

Remove the screws and position the rear lamp assembly aside.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

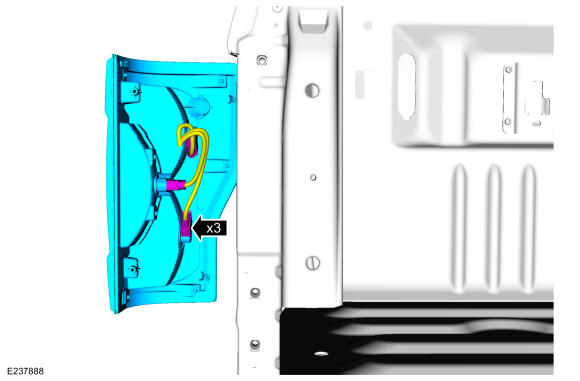

Disconnect the electrical connectors and remove the rear lamp assembly.

Courtesy of FORD MOTOR COMPANY

Rear lamp assembly with side obstacle detection - pick-up box mounted
Remove the screws and position the rear lamp assembly aside.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

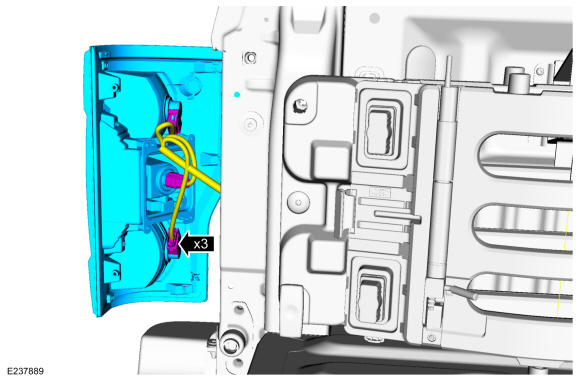

Disconnect the electrical connectors and remove the rear lamp assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new side obstacle detection (SOD) module.

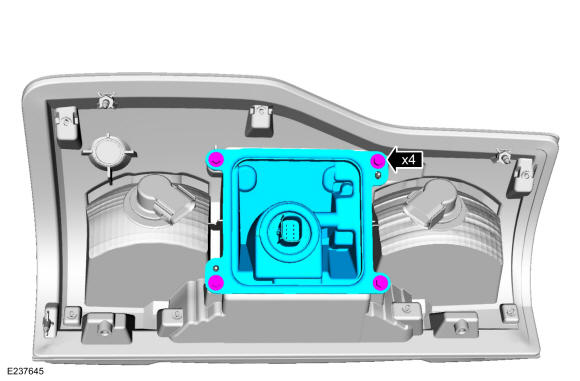

Remove the screws and the side obstacle detection (SOD) control module assembly.

Courtesy of FORD MOTOR COMPANY
NOTE: This step is only necessary when installing a new side obstacle detection (SOD) module.

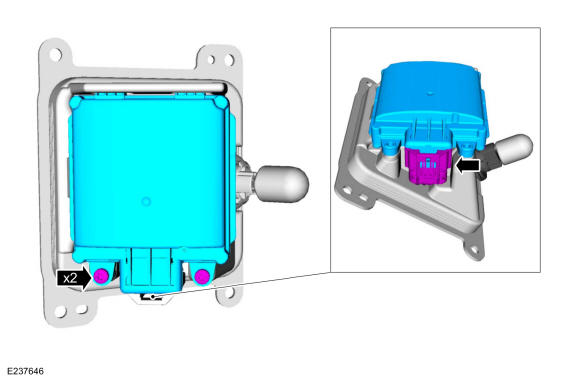

Remove the screws, disconnect the electrical connector and remove the side obstacle detection (SOD) control module.

Courtesy of FORD MOTOR COMPANY

Rear lamp assembly without side obstacle detection - frame mounted

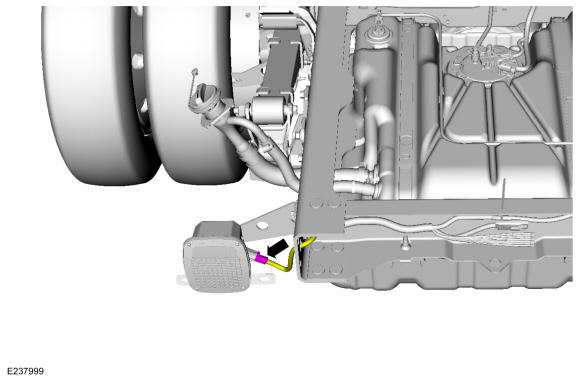

Disconnect the rear lamp assembly electrical connector.

Courtesy of FORD MOTOR COMPANY

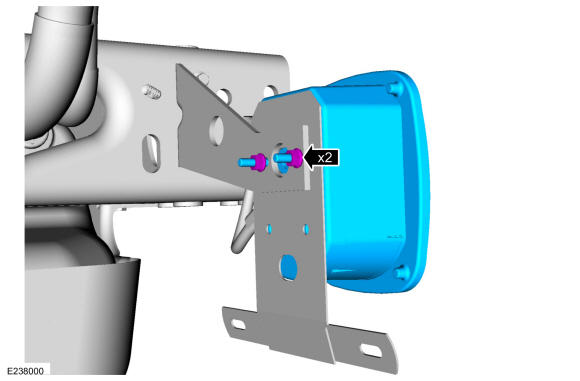

Remove the nuts and the rear lamp assembly.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

Center mounted rear lamp assembly

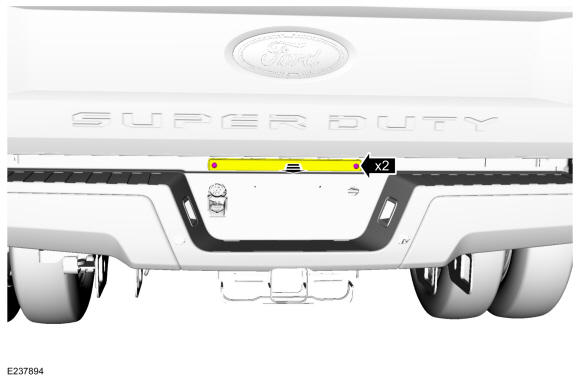

Remove the screws and position the center rear lamp assembly out.
Torque: 48 lb.in (5.4 Nm)

Courtesy of FORD MOTOR COMPANY

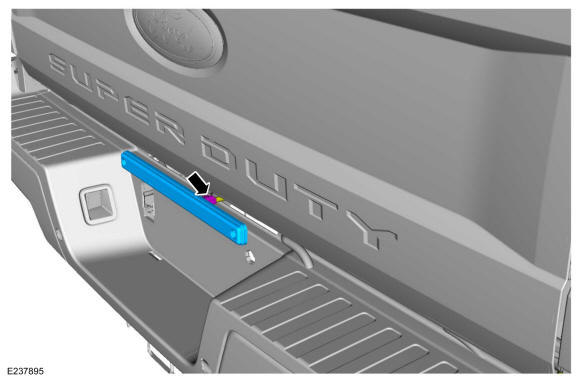

Disconnect the electrical connector and remove the center rear lamp assembly.

Courtesy of FORD MOTOR COMPANY
