Light Emitting Diode (LED) Control Module: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
- Remove the headlamp assembly. Refer to: Headlamp Assembly .

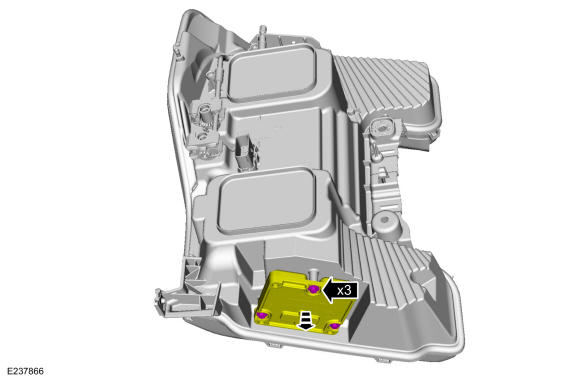

- Remove the screws and position the LED control module down.

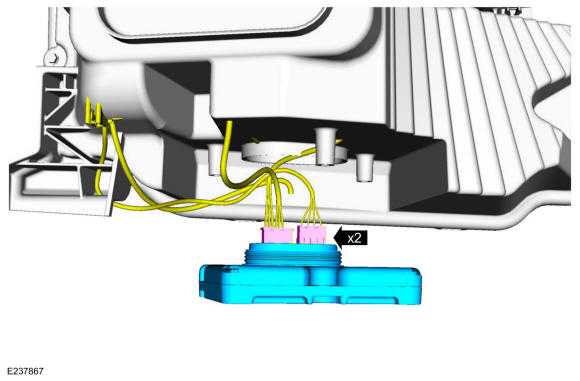

- Disconnect the electrical connectors and remove the LED control module down.
