High Mounted Stoplamp: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

Remove the screws and position the high mounted stoplamp.

Courtesy of FORD MOTOR COMPANY

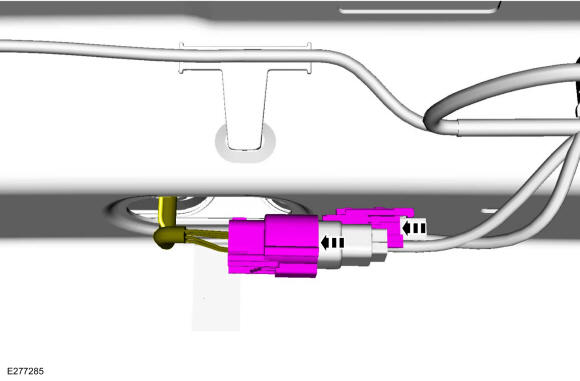

NOTE: Access the electrical connector through the opening located behind the highmounted stoplamp.

NOTE: The electrical connector is shown from inside the cab without the headliner for clarity.

Disconnect the high mounted stoplamp electrical connector.

Courtesy of FORD MOTOR COMPANY

NOTE: Carry out the following steps only if replacing high mounted stoplamp bulbs.

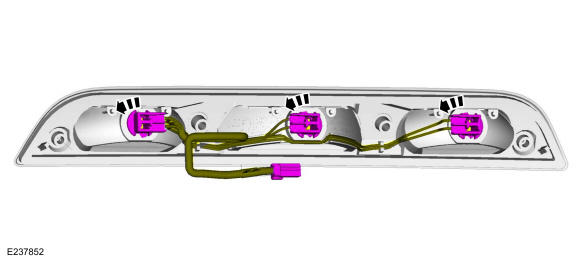

Remove, as required, the bulb holder by turning counter clock-wise.

Courtesy of FORD MOTOR COMPANY

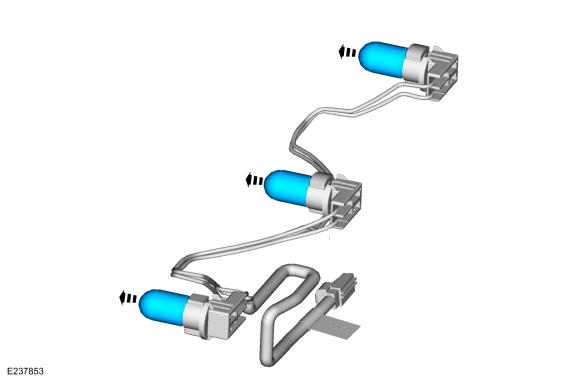

Remove as required, the high mounted stoplamp bulb.

Courtesy of FORD MOTOR COMPANY
