Headlamp Switch: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

  1. NOTE: Push button start vehicle shown, all others similar.

    Lower the steering column opening trim panel.

    GFD410262Courtesy of FORD MOTOR COMPANY
  2. Disconnect the electrical connector and harness retainer.
    GFD410263Courtesy of FORD MOTOR COMPANY

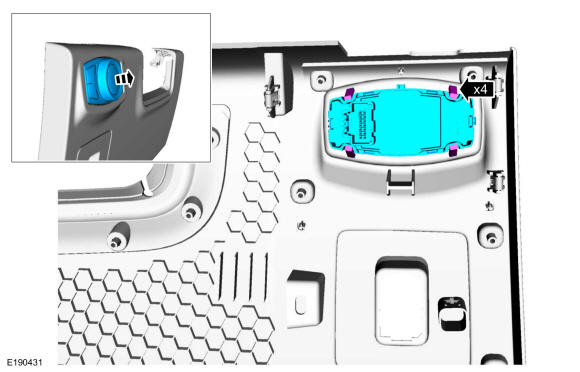

  3. Release the tabs and remove the headlamp switch.
GFD410264Courtesy of FORD MOTOR COMPANY
