Headlamp Assembly: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
All headlamp assemblies
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the radiator grille. Refer to: Radiator Grille .
- Position the bumper seal down and remove the screw.
Torque: 28 lb.in (3.2 Nm)

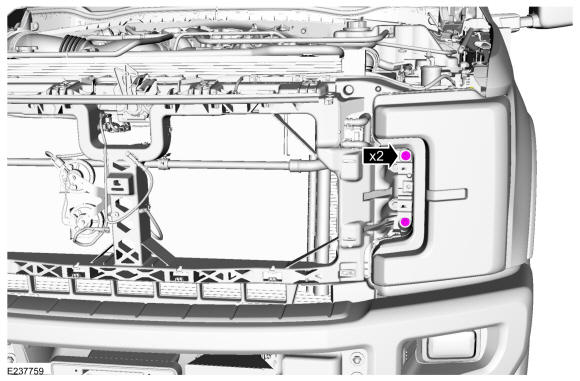

- Remove the front headlamp assembly bolts.
Torque: 28 lb.in (3.2 Nm)

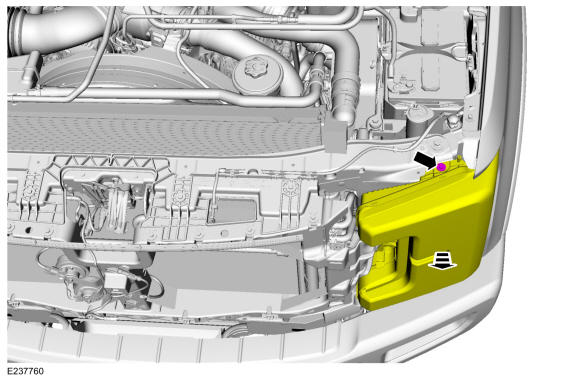

- Remove the bolt and position the headlamp assembly forward.
Torque: 28 lb.in (3.2 Nm)
Vehicles equipped with light emmitting diode (LED) headlamp assemblies

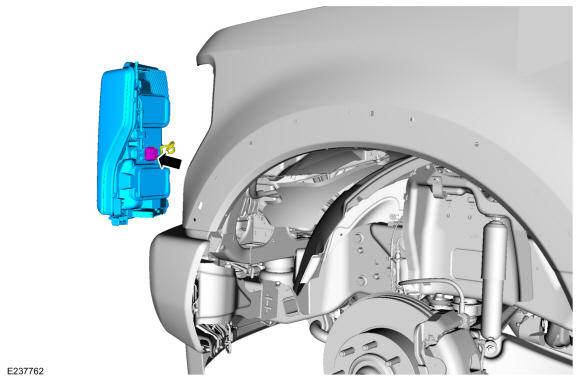

- Disconnect the electrical connector and remove the headlamp assembly.
Vehicles equipped with halogen headlamp assemblies

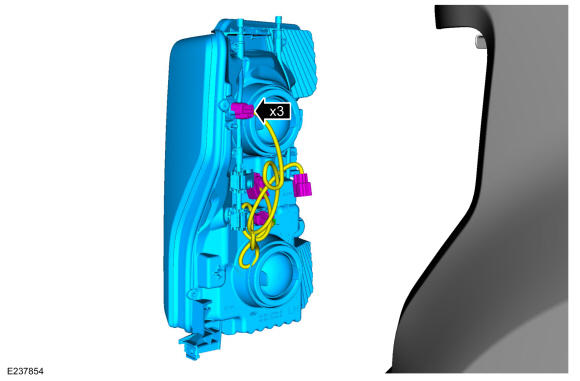

- Disconnect the electrical connectors and remove the headlamp assembly.
Vehicles equipped with daytime running lamps

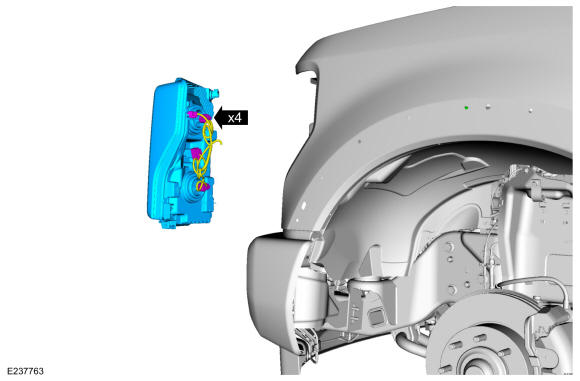

- Disconnect the electrical connectors and remove the headlamp assembly.
