Front Fog Lamp: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
LH fog lamp is shown, RH is similar.
- Remove the front wheel and tire. Refer to: Wheel and Tire - Vehicles With: Single Rear Wheels .

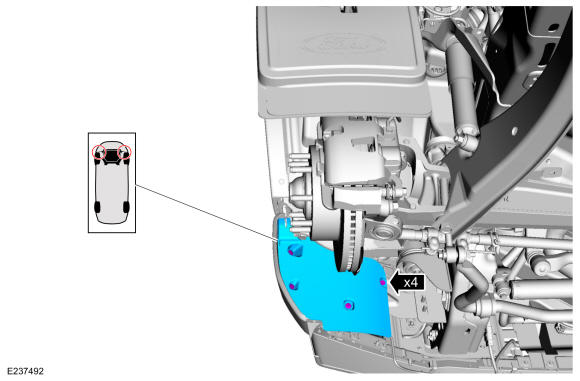

- Remove the screws and the front fender filler panel.
Torque: 15 lb.in (1.7 Nm)

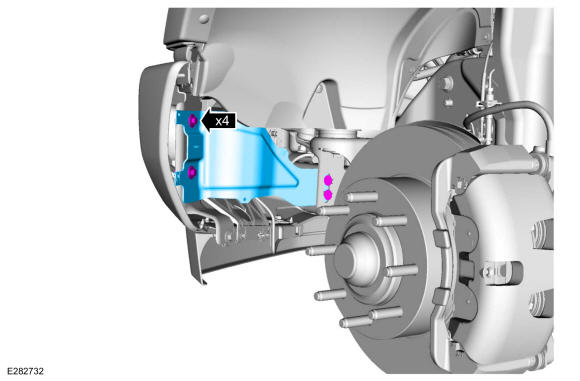

- Remove the bolts and the bumper extension.
Torque: 35 lb.ft (47.6 Nm)
-
NOTE: halogen bulb shown, LED lamp is similar.

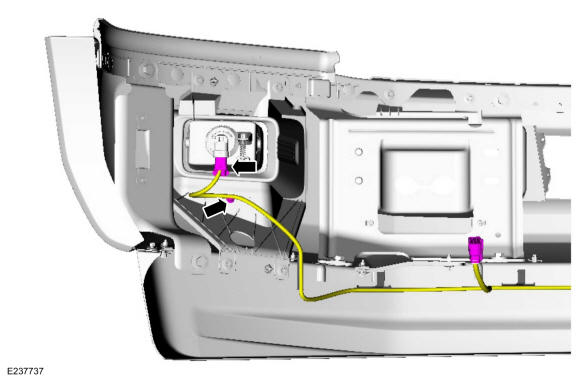

Disconnect the fog lamp electrical connector, separate the wiring guide and position the harness aside.

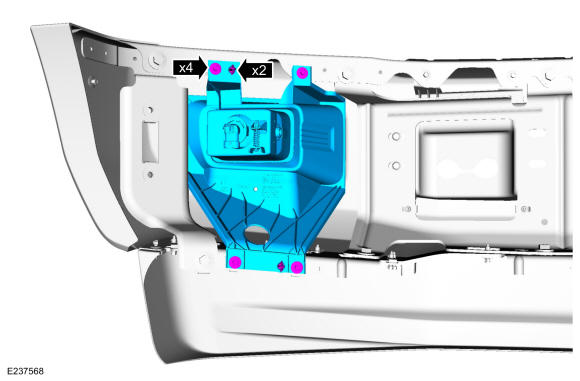

- Remove the bolts, release the tabs and remove the fog lamp assembly.
