Power Steering Pump - 6.2L V8: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
While repairing the power steering system, care should be taken to prevent the entry of contaminants or failure of the power steering components may result.
NOTE:
New O-ring seals must be installed on the pressure and return line/hose fittings or a fluid leak may occur.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the accessory drive belt. Refer to: Accessory Drive Belt .
-
- Clean the area around the power steering fluid reservoir cap.
- Remove the power steering fluid reservoir cap.
- Using a suction gun remove the power steering fluid.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .

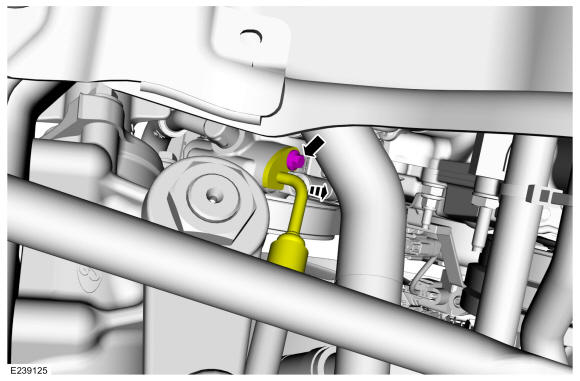

- Remove the power steering fluid pressure line clamp plate-to-power steering pump bolt and position aside the power steering fluid pressure line.
Torque: 18 lb.ft (25 Nm)
- Remove and discard the O-ring seals.

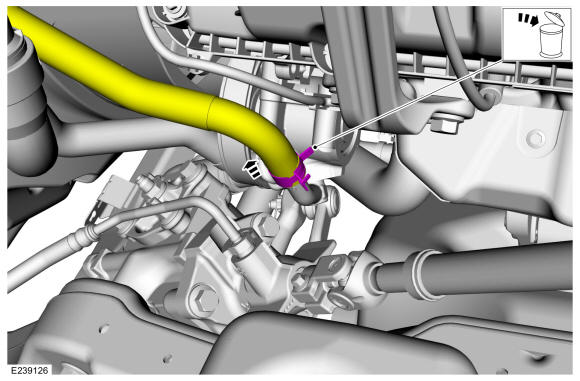

- Remove and discard the power steering fluid supply hose clamp and position aside the power steering fluid supply hose.

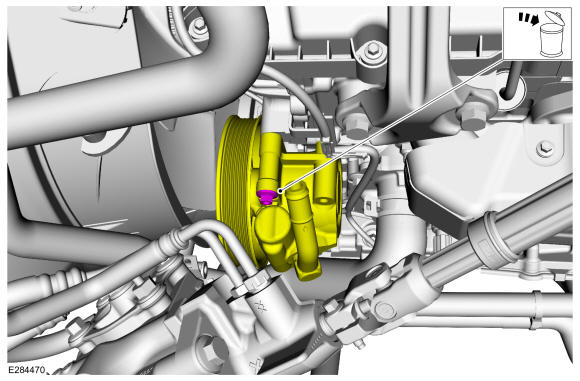

- Remove and discard the power steering pump upper bolt.
Torque: 18 lb.ft (25 Nm)

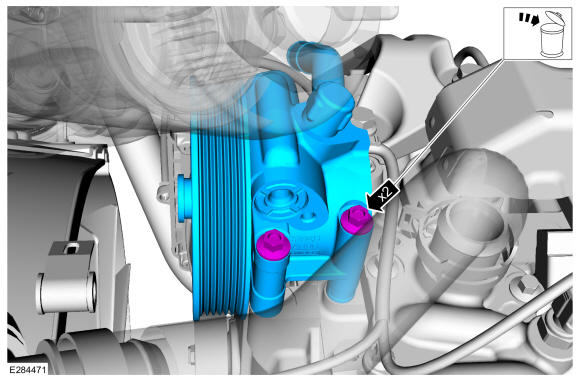

- Remove and discard the power steering pump lower bolts and remove the power steering pump.
Torque: 18 lb.ft (25 Nm)
