Power Steering Fluid Reservoir: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: While repairing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.

NOTE: Removal steps in this procedure may contain installation details.

1. Clean the area around the power steering fluid reservoir cap.
2. Remove the power steering fluid reservoir cap.
Courtesy of FORD MOTOR COMPANY
Using a suction gun remove the power steering fluid.

Courtesy of FORD MOTOR COMPANY

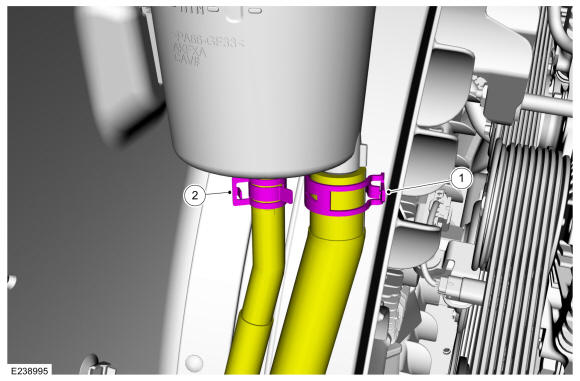

NOTE: All vehicles except vehicles equipped with Hydro-Boost® Brakes.

NOTE: Make sure that all openings are sealed.

NOTE: Note the position of the components before removal.
1. Release the clamp and disconnect the power steering fluid pump hose from the power steering fluid reservoir.
2. Release the clamp and disconnect the power steering fluid cooler hose from the power steering fluid reservoir.
Courtesy of FORD MOTOR COMPANY

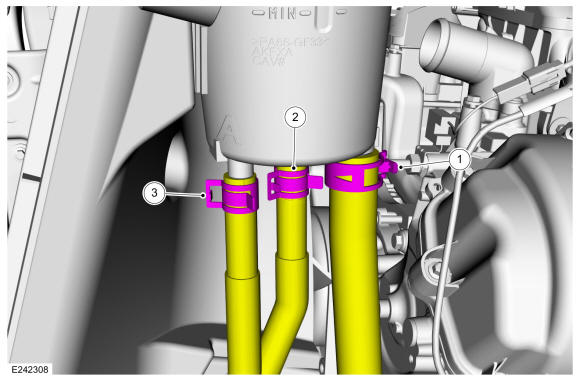

NOTE: Vehicles equipped with Hydro-Boost® Brakes.

NOTE: Make sure that all openings are sealed.

NOTE: Note the position of the components before removal.
1. Release the clamp and disconnect the power steering fluid pump hose from the power steering fluid reservoir.
2. Release the clamp and disconnect the power steering fluid cooler hose from the power steering fluid reservoir.
3. Release the clamp and disconnect the power steering fluid Hydro-Boost® hose from the power steering fluid reservoir.
Courtesy of FORD MOTOR COMPANY

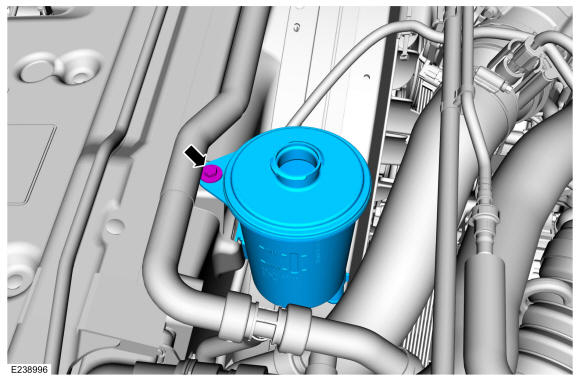

Remove the bolt and the power steering fluid reservoir.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
