Tailgate Moulding: Removal

WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

For information on Ford Color Coded Illustrations refer to OEM Color Coding

NOTE: Removal steps in this procedure may contain installation details.

All vehicles

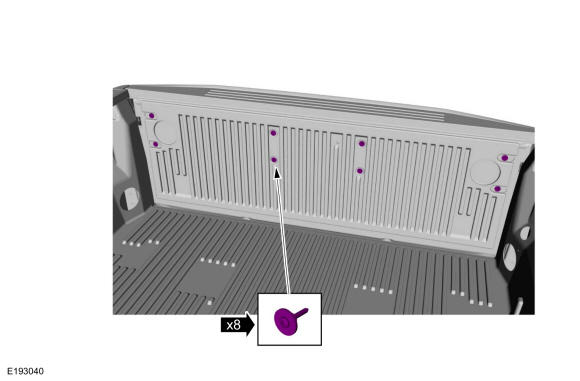

Remove the screws from the tailgate liner.
Torque: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

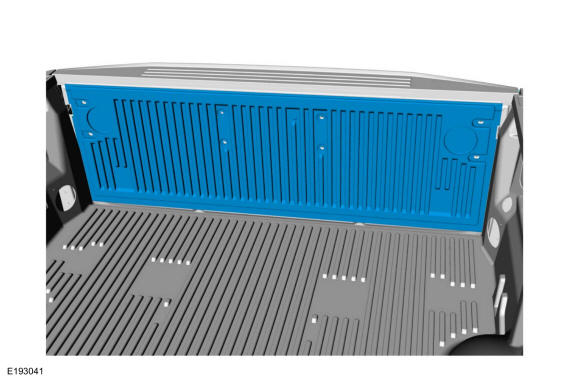

Remove the tailgate liner.

Courtesy of FORD MOTOR COMPANY

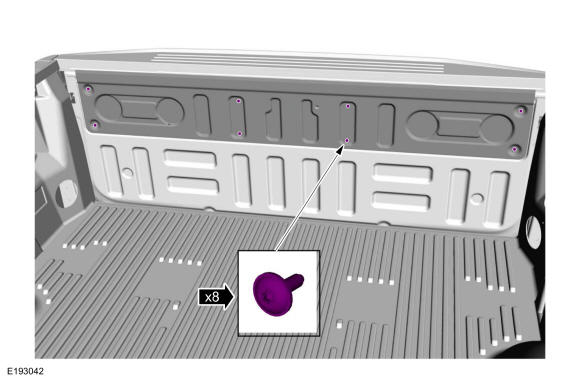

Remove the screws from the inner panel.
Torque: 28 lb.in (3.2 Nm)

Courtesy of FORD MOTOR COMPANY

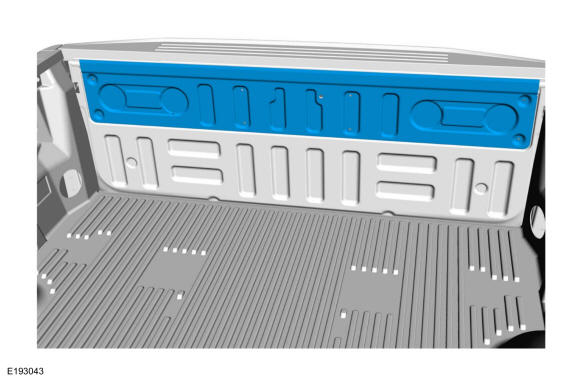

Remove the inner panel.

Courtesy of FORD MOTOR COMPANY

Vehicles without Flexible Step

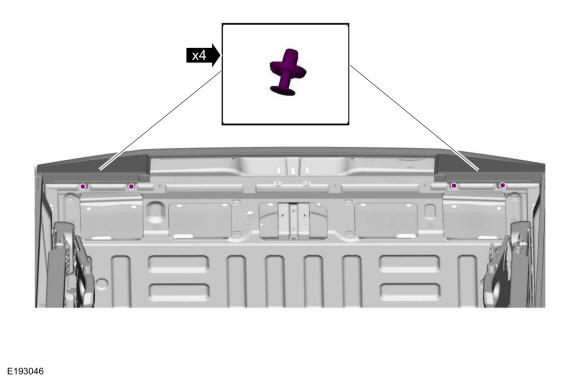

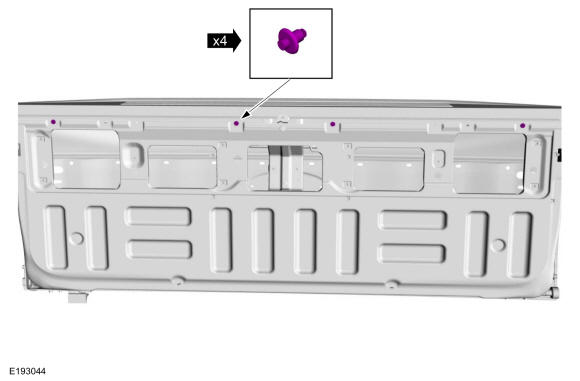

Remove the push pin retainers.

Courtesy of FORD MOTOR COMPANY

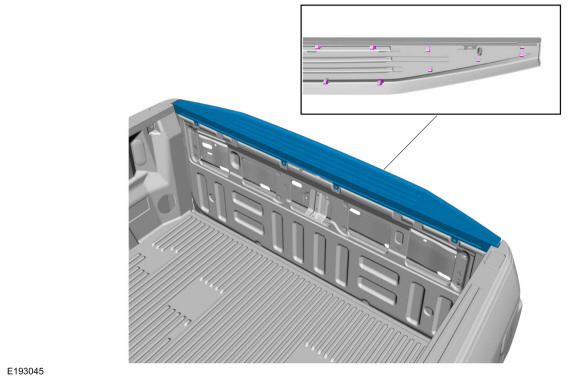

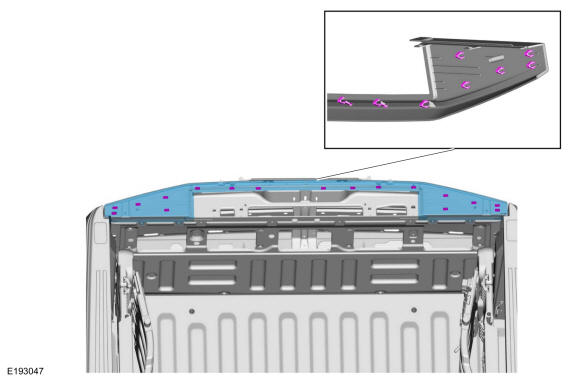

Using a non-marring trim tool, disengage the retainers from the tailgate and remove the moulding.

Courtesy of FORD MOTOR COMPANY

Vehicles with Flexible Step
Remove the push pin retainers.

Courtesy of FORD MOTOR COMPANY
NOTE: Replace the tailgate handle if the tailgate moulding is replaced.

Using a non-marring trim tool, disengage the retainers from the tailgate and remove the moulding.

Courtesy of FORD MOTOR COMPANY

Vehicles with Tailgate Applique

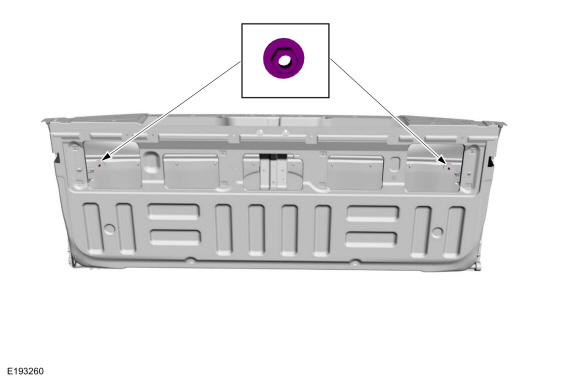

Remove the 2 retainer nuts and washers.
Torque: 36 lb.in (4.1 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Use care when disengaging push pins from tailgate to avoid damage to the applique.

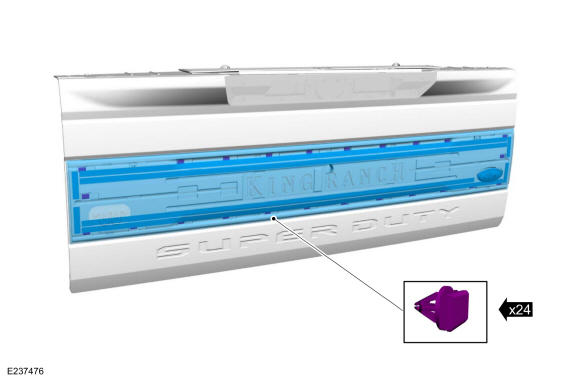

Using a non-marring trim tool, disengage the push pin retainers from the tailgate and remove the applique.

Courtesy of FORD MOTOR COMPANY
