Roof Moulding: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
Regular cab shown, super and crew cabs similar.
- Remove the back glass. Refer to: Fixed Glass .

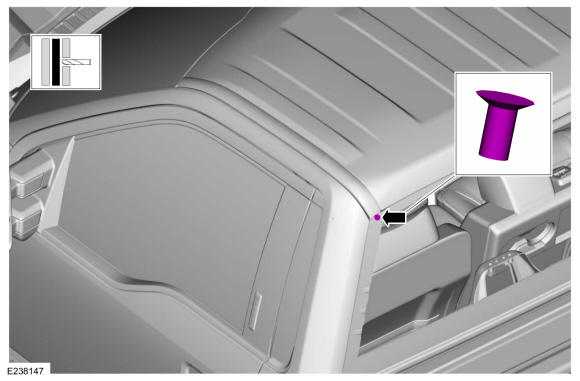

- Drill out the rivet on the rear corner of the roof molding.
-
NOTE: Use care while removing the moulding to avoid breaking tabs along the edge of the moulding.

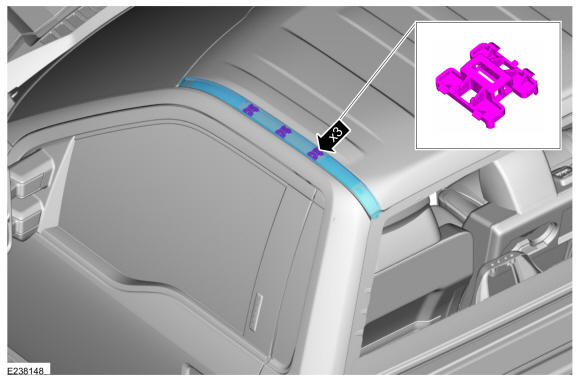

Detach the roof moulding from the retainer clips and remove the roof moulding.
