Rear Quarter Panel Moulding: Removal
WARNING: This page is about a different car, the 2019 Ford F-550 Super Duty, 2019 Ford F-450 Super Duty, 2019 Ford F-350 Super Duty, and 2019 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
For information on Ford Color Coded Illustrations refer to OEM Color Coding
NOTE:
Removal steps in this procedure may contain installation details.

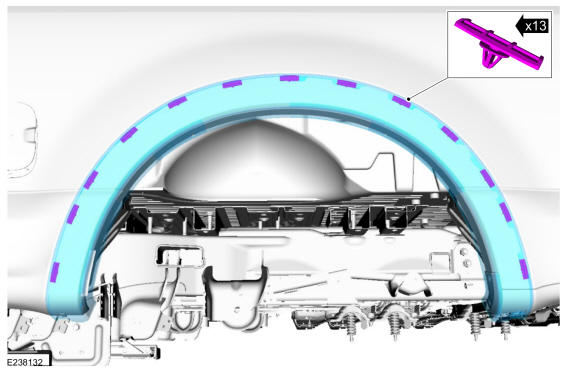

- Remove the retainers and the push pins.
Torque: 71 lb.in (8 Nm)
-
NOTE: Use moderate force to avoid breaking retainer clips.
Using a non-marring trim tool, detach the retainers and remove the rear quarter panel moulding.
